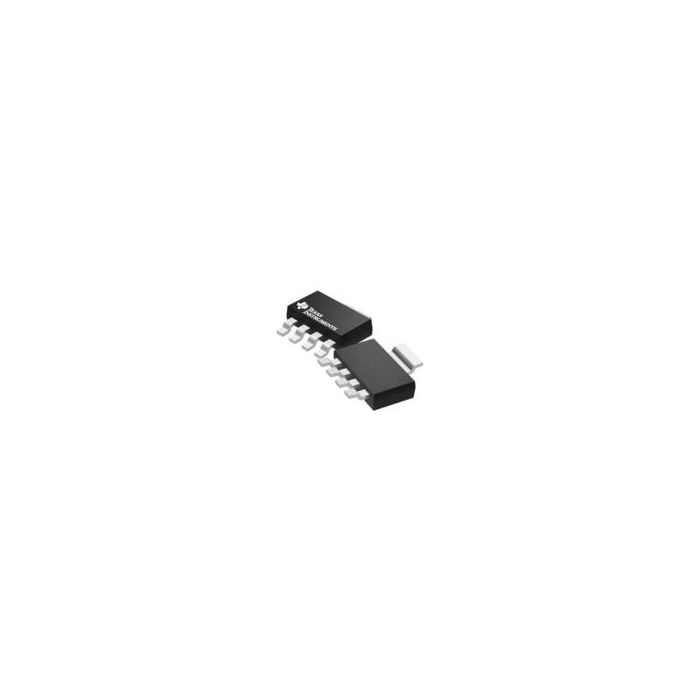

LP3964EMP-ADJ/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LP3964EMP-ADJ_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LP3964EMP-ADJ/NOPB

LDO Regulator Pos 1.2V to 5V 0.8A 5-Pin(4+Tab) SOT-223 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 344
  • Inventory 8
  • PCNs 42
  • GIDEP-Alerts 2
  • MaskPart LP3964EMPADJNOPB%
  • IntroductionDate Jun 18, 2002

Parametry

  • Accuracy (%) ±1.5
  • Junction to Ambient 90°C/W
  • Junction to Case N/A
  • Line Regulation 0.02%(Typ)
  • Load Regulation 0.02%(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.03@80mA|0.3@800mA
  • Maximum Input Voltage (V) 7
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.8
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Minimum Input Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.2 to 5
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.024@80mA|0.24@800mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 3

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.2V to 5V 0.8A 5-Pin(4+Tab) SOT-223 T/R
