LP2950CZ-3.0G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LP2950CZ-3.0G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / LP2950CZ-3.0G

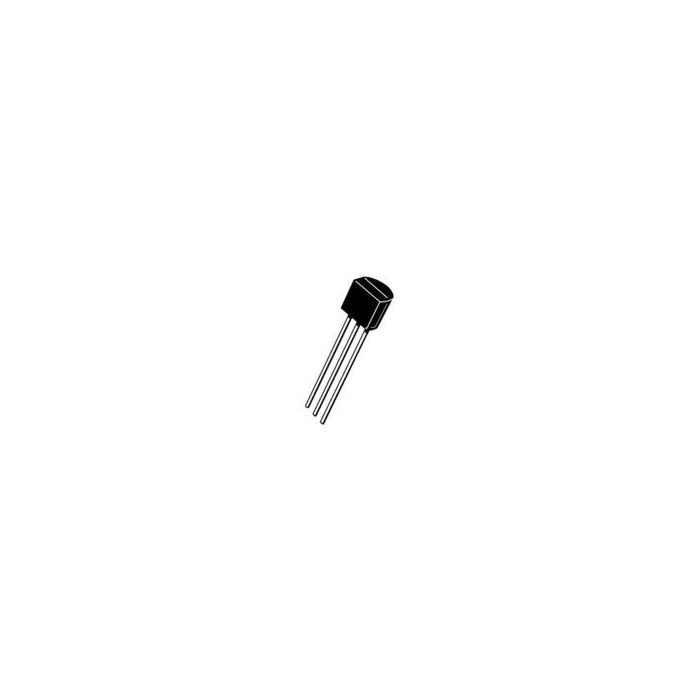

LDO Regulator Pos 3V 0.1A 3-Pin TO-92 Bag

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 48
  • Inventory 4
  • PCNs 24
  • GIDEP-Alerts 1
  • MaskPart LP2950CZ3.0G%
  • IntroductionDate Oct 20, 1999
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=LP2950CZ-3.0G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 160°C/W
  • Junction to Case 83°C/W
  • Line Regulation 0.2%
  • Load Regulation 0.2%
  • Maximum Dropout Voltage @ Current (V) 0.08@100uA|0.45@100mA
  • Maximum Input Voltage (V) 30
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.1(Min)
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Minimum Input Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 3
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.03@100uA|0.35@100mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.075

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3V 0.1A 3-Pin TO-92 Bag
