LP0603A2140ANTR
Do pobrania | Download |
---|---|

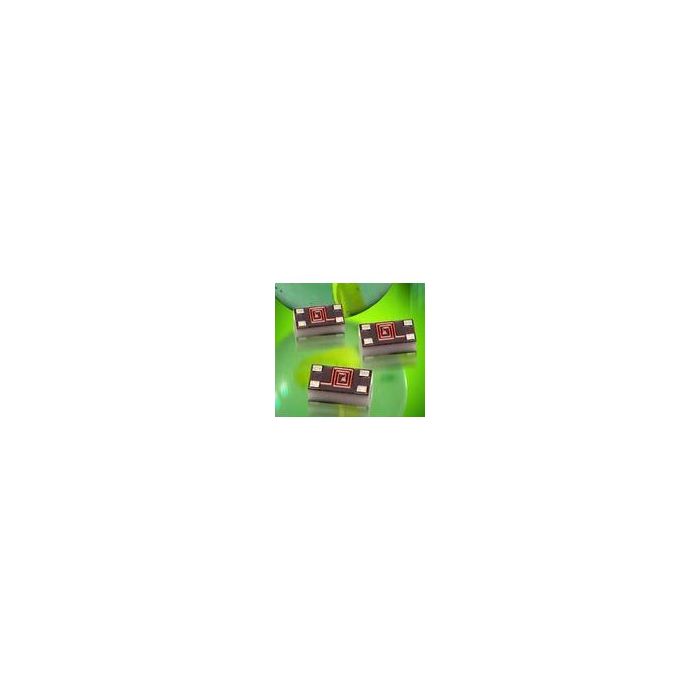

Main description | RF Filter Low Pass 2110MHz to 2170MHz 0.5dB 50Ohm SMD 4Pin 0603 Automotive T/R |
RF Filter Low Pass 2110MHz to 2170MHz 0.5dB 50Ohm SMD 4Pin 0603 Automotive T/R
Informacje podstawowe
- ProducentAVX
- EURoHSYes (2011/65/EU)
- Automotive Yes
Informacje dodatkowe
- Crosses 5
- Inventory 2
- PCNs 4
- MaskPart LP0603A2140AN%
- IntroductionDate Oct 09, 2007
Parametry
- Bandwidth (MHz) 2110 to 2170
- Center Frequency (MHz) N/A
- Connector Type N/R
- Load Impedance 50Ohm
- Maximum Insertion Loss (dB) 0.5
- Maximum Pass Band Ripple (dB) N/A
- Maximum Storage Temperature (°C) 85
- Maximum VSWR 1.4
- Minimum Return Loss (dB) N/A
- Minimum Storage Temperature (°C) -40
- Tradename N/A
- Type Low Pass
