LMH6672MAX/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LMH6672MAX_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LMH6672MAX/NOPB

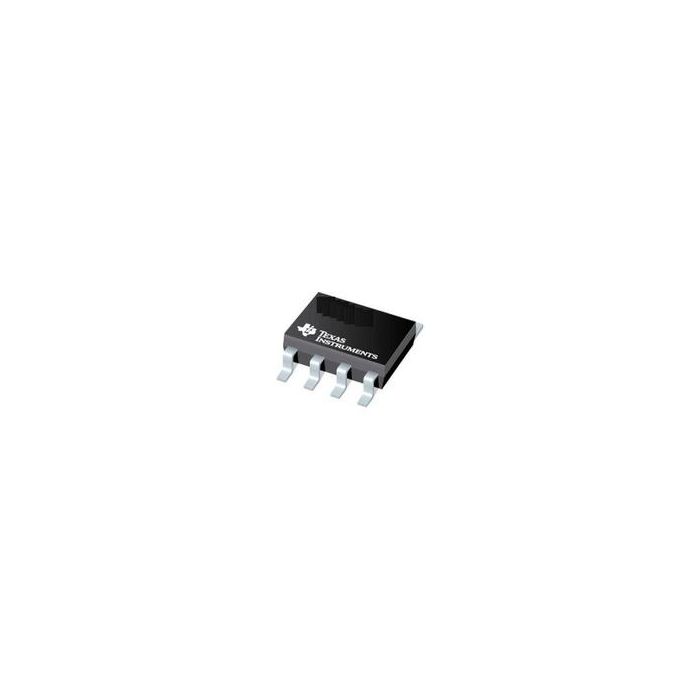

ADSL Driver Dual 8-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 2
  • PCNs 42
  • MaskPart LMH6672MAXNOPB%
  • IntroductionDate Jan 01, 2002

Parametry

  • Amplifier Topology Voltage Feedback Amplifier
  • JTAG Support No
  • Maximum Dual Supply Voltage (V) ±6.5
  • Maximum High Drive Current (mA) 525(Typ)@±6V
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) 13
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (A) 8@±6V
  • Minimum CMRR (dB) 150
  • Minimum Dual Supply Voltage (V) ±2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 5
  • Minimum Storage Temperature (°C) -65
  • Mode of Oscillation N/A
  • Number of Drivers/Receivers 2
  • Operating Supply Voltage (V) ±3|±5
  • Output Impedance (Ohm) N/A
  • Output Type Differential
  • Power Supply Type Dual
  • Supplier Temperature Grade N/A
  • Type Driver
  • Typical 3dB Bandwidth (MHz) 90
  • Typical Dual Supply Voltage (V) ±3|±5
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Single Supply Voltage (V) 9|12
  • Typical Slew Rate (V/us) 135@±6V
  • Typical Total Harmonic Distortion (dB) -110

Więcej informacji

Do pobrania Download
Main description ADSL Driver Dual 8-Pin SOIC T/R
