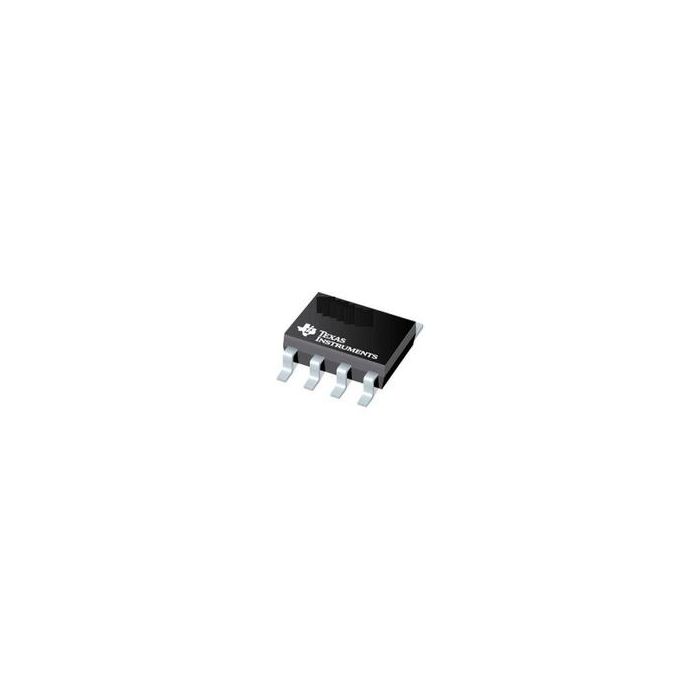

LMH6504MA
| Do pobrania | Download |
|---|---|
| Main description | SP Amp Variable Gain Amp Single ±6V 8-Pin SOIC Rail |
SP Amp Variable Gain Amp Single ±6V 8-Pin SOIC Rail
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 1
- PCNs 46
- MaskPart LMH6504MA%
- IntroductionDate Nov 01, 2003
Parametry
- Maximum Dual Supply Voltage (V) ±6
- Maximum Input Bias Current (uA) 3.5@±5V
- Maximum Input Offset Voltage (mV) N/A
- Maximum Input Resistance (MOhm) 7(Typ)@±5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 15@±5V
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 10 to 15
- Maximum Voltage Gain (dB) N/A
- Maximum Voltage Gain Range (dB) N/A
- Minimum CMRR (dB) N/A
- Minimum CMRR Range (dB) N/A
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) ±3.5
- Minimum PSRR (dB) 65
- Minimum Single Supply Voltage (V) N/R
- Number of Channels per Chip 1
- Number of Elements per Chip 1
- Output Type N/A
- Power Supply Type Dual
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Type Variable Gain Amplifier
- Typical Dual Supply Voltage (V) ±5
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Current (mA) 80@±5V
- Typical Single Supply Voltage (V) N/R
