LMH6321TSX/NOPB
ProducentTexas InstrumentsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
- SKU
- LMH6321TSX_NOPB_TEXAS_INSTRUMENTS
0,00 zł
Opis / LMH6321TSX/NOPB

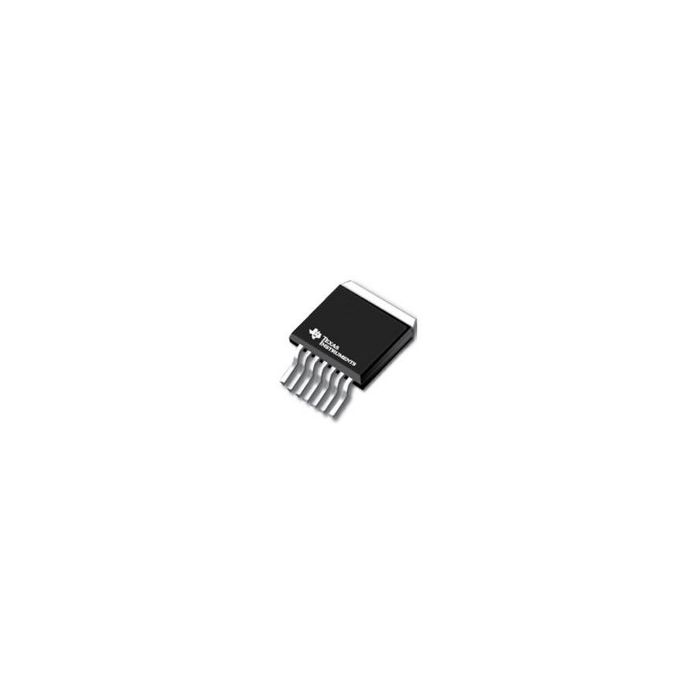

Op Amp Single GP R-R I/P ±16V/32V 8-Pin(7+Tab) TO-263 T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 4
- PCNs 41
- MaskPart LMH6321TS%NOPB
- IntroductionDate Feb 16, 2006
Parametry
- Manufacturer Type High Speed Amplifier
- Maximum Dual Supply Voltage (V) ±16
- Maximum Input Bias Current (uA) 15@±5V
- Maximum Input Offset Current (uA) N/A
- Maximum Input Offset Voltage (mV) 35@±5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 17.5@±5V
- Maximum Single Supply Voltage (V) 32
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 32 to 36
- Minimum CMRR (dB) 60
- Minimum CMRR Range (dB) 60 to 65
- Minimum Dual Supply Voltage (V) ±2.5
- Minimum PSRR (dB) 58
- Minimum Single Supply Voltage (V) 5
- Number of Channels per Chip 1
- Output Type Push-Pull
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail Rail to Rail Input
- Shut Down Support Yes
- Supplier Temperature Grade N/A
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Input Noise Voltage Density (nV/rtHz) 2.8@±15V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) 2.4@±15V
- Typical Output Current (mA) N/A
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 9|12|15|18|24|28
- Typical Slew Rate (V/us) 450@±5V
- Typical Voltage Gain (dB) 0.052
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Single GP R-R I/P ±16V/32V 8-Pin(7+Tab) TO-263 T/R |
