LM393-D08-T
| Do pobrania | Download |
|---|---|
| Main description | Comparator Dual ±18V/36V 8-Pin DIP Tube |

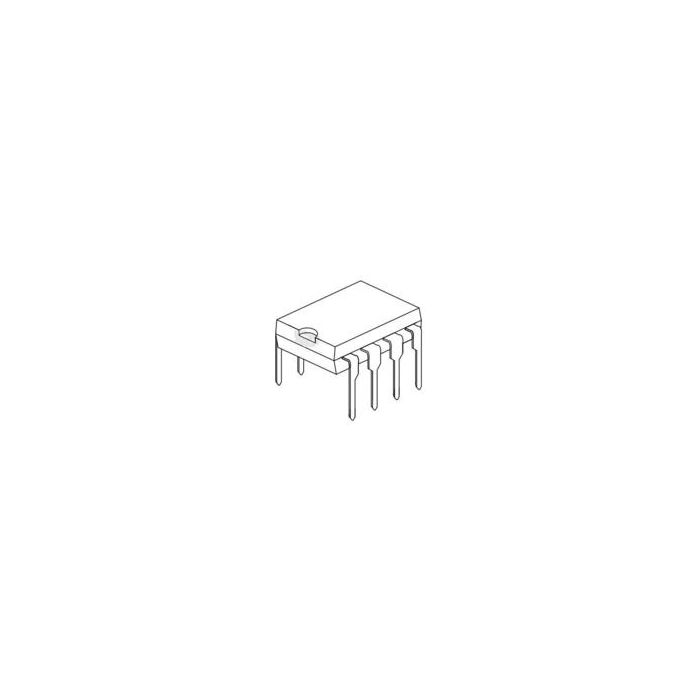

Comparator Dual ±18V/36V 8-Pin DIP Tube
Informacje podstawowe
- ProducentUnisonic Technologies Company Limited
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 217
- PCNs 3
- MaskPart LM393D08%
- IntroductionDate Jun 14, 2000
Parametry
- Manufacturer Type Differential Comparator
- Maximum Dual Supply Voltage (V) ±18
- Maximum Input Bias Current (uA) 0.25@5V
- Maximum Input Offset Voltage (mV) 5@5V
- Maximum Power Dissipation (mW) 600
- Maximum Propagation Delay Time (ns) N/A
- Maximum Single Supply Voltage (V) 36
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 1@5V
- Minimum Dual Supply Voltage (V) ±1
- Minimum Single Supply Voltage (V) 2
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 2
- Output Type Open Collector
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail N/A
- Strobe Capability No
- Supplier Temperature Grade N/A
- Typical CMRR (dB) N/A
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Output Current (mA) 18@5V
- Typical PSRR (dB) N/A
- Typical Response Time (us) 1.4
- Typical Response Time Range (us) 0.5 to 5
- Typical Single Supply Voltage (V) 3|5|9|12|15|18|24|28
- Typical Voltage Gain (dB) 106.02
- Typical Voltage Gain Range (dB) 90 to 110
