LM3886T/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM3886T_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM3886T/NOPB

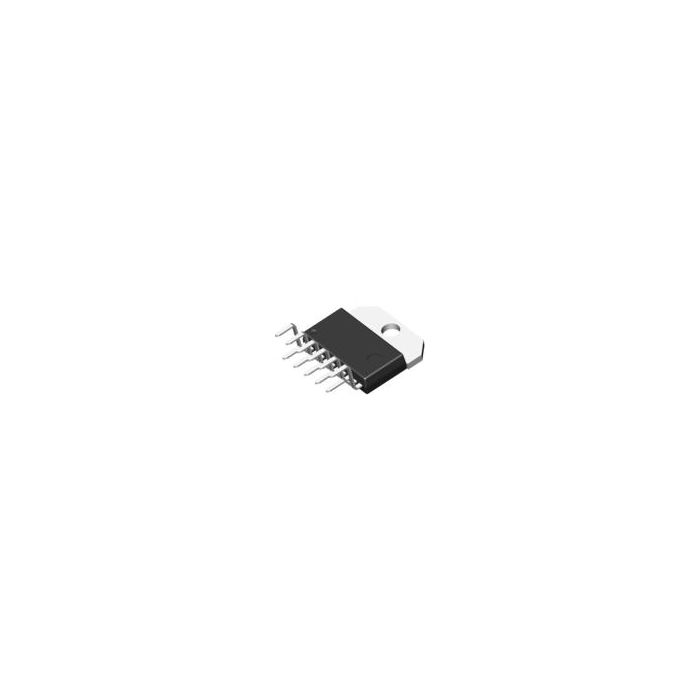

Audio Amp Speaker 1-CH Mono 68W Class-AB 11-Pin(11+Tab) TO-220 Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 9
  • PCNs 40
  • MaskPart LM3886TNOPB%
  • IntroductionDate Apr 01, 1995

Parametry

  • Amplifier Type Class-AB
  • Function Speaker
  • Input Signal Type Differential
  • Maximum Dual Supply Voltage (V) ±42
  • Maximum Input Bias Current (uA) 1@±28V
  • Maximum Input Offset Voltage (mV) 10
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 70
  • Maximum Output Current (mA) 11500(Typ)
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 125000
  • Maximum Quiescent Current (mA) 85@±28V
  • Maximum Single Supply Voltage (V) 84
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) 85
  • Minimum Dual Supply Voltage (V) ±10
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 20
  • Output Signal Type Single
  • Output Type 1-Channel Mono
  • Power Supply Type Single|Dual
  • Rail to Rail N/A
  • Supplier Temperature Grade N/A
  • Total Harmonic Distortion Noise 0.03%@4Ohm@60W
  • Typical Dual Supply Voltage (V) ±9
  • Typical Gain Bandwidth Product (MHz) 8
  • Typical Output Power x Channels @ Load (W) 68x1@4Ohm
  • Typical PSRR (dB) 120
  • Typical Quiescent Current (mA) 50@±28V
  • Typical Single Supply Voltage (V) 18
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 115

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 1-CH Mono 68W Class-AB 11-Pin(11+Tab) TO-220 Tube
