LM317KTTRG3
ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- LM317KTTRG3_TEXAS_INSTRUMENTS
0,00 zł
Opis / LM317KTTRG3

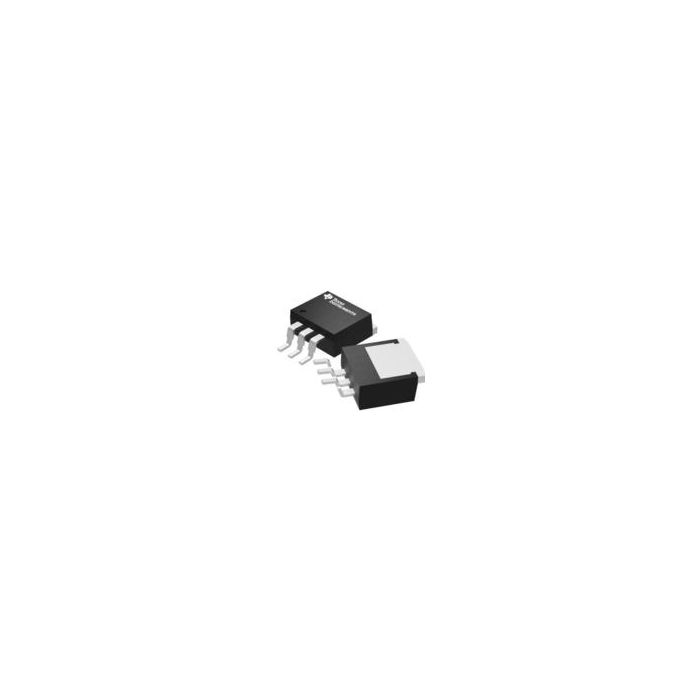

Standard Regulator Pos 1.25V to 37V 1.5A 4-Pin(3+Tab) TO-263 T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 217
- Inventory 2
- PCNs 45
- MaskPart LM317KT%G3
- IntroductionDate Jan 01, 2007
Parametry
- Accuracy (%) N/A
- Junction to Ambient 25.3°C/W
- Junction to Case 18°C/W
- Line Regulation 0.04%/V
- Load Regulation 0.5%Vo
- Maximum Dropout Voltage @ Current (V) 3@1500mA
- Maximum Input Voltage (V) 40
- Maximum Output Current (A) 1.5
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4.2
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 1.25 to 37
- Output Voltage Range (V)
- Polarity Positive
- Reference Voltage (V) 1.3
- Special Features Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Protection
- Supplier Temperature Grade N/A
- Type Standard
- Typical Dropout Voltage @ Current (V) N/A
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.05
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Standard Regulator Pos 1.25V to 37V 1.5A 4-Pin(3+Tab) TO-263 T/R |
