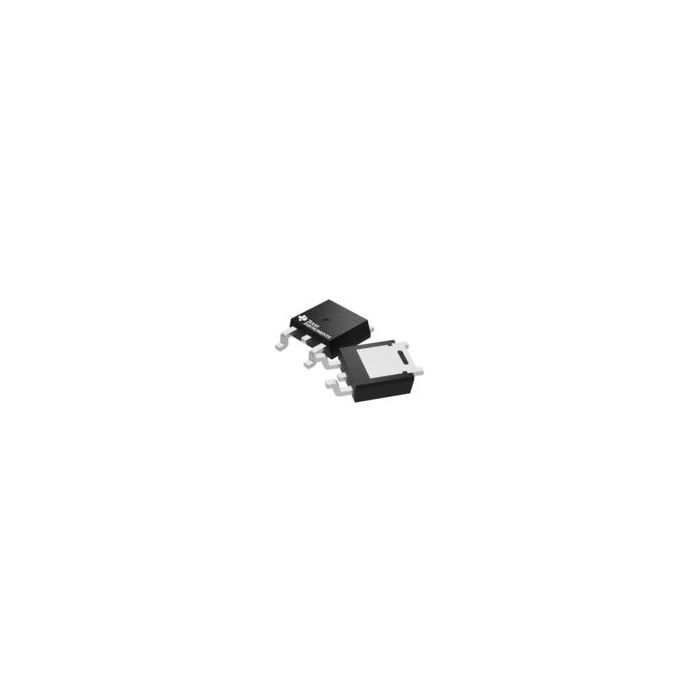

LM317AMDT/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM317AMDT_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM317AMDT/NOPB

Standard Regulator Pos 1.2V to 37V 0.5A 3-Pin(2+Tab) TO-252 Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 75
  • Inventory 5
  • PCNs 45
  • GIDEP-Alerts 1
  • MaskPart LM317AMDTNOPB%
  • IntroductionDate Feb 01, 1998

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 103°C/W(Typ)
  • Junction to Case 12°C/W(Typ)
  • Line Regulation 0.01%/V
  • Load Regulation 0.5%
  • Maximum Dropout Voltage @ Current (V) N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.5
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Minimum Input Voltage (V) 4.2
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.2 to 37
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.262
  • Special Features Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type Standard
  • Typical Dropout Voltage @ Current (V) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.05

Więcej informacji

Do pobrania Download
Main description Standard Regulator Pos 1.2V to 37V 0.5A 3-Pin(2+Tab) TO-252 Tube
