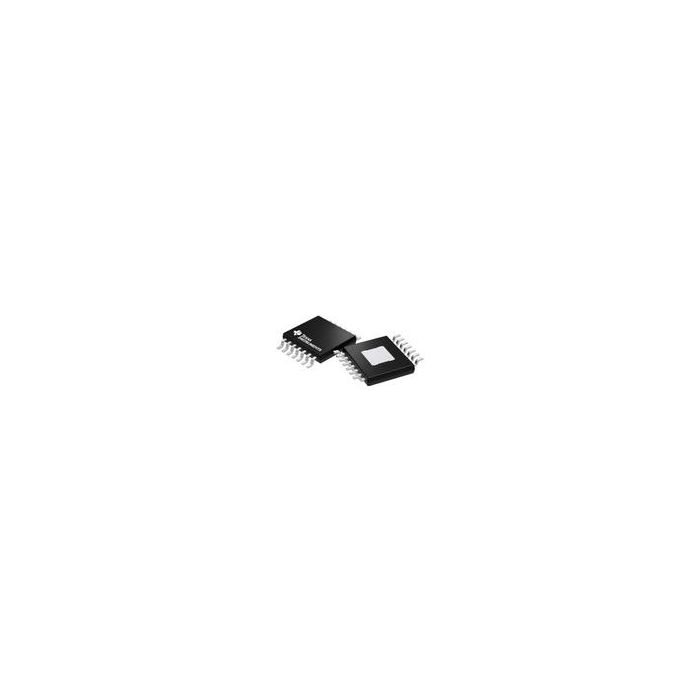

LM3150MHX/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM3150MHX_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM3150MHX/NOPB

DC/DC Cntrlr Single-OUT Step Down 1000kHz 14-Pin HTSSOP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 122
  • Inventory 7
  • PCNs 43
  • FoundINBOMs 1
  • MaskPart LM3150MH%NOPB
  • IntroductionDate Oct 17, 2008

Parametry

  • Control Method N/A
  • Maximum Input Voltage (V) 42
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 12
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 3.5(Typ)
  • Maximum Switching Frequency (kHz) 1000
  • Minimum Input Voltage (V) 6
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) N/A
  • Minimum Storage Temperature (°C) -65
  • Minimum Switching Frequency (kHz) 200
  • Number of Outputs 1
  • Operating Supply Voltage (V) 6 to 42
  • Output Voltage (V) 0.6(Min)
  • Process Technology N/A
  • Programmability Yes
  • Supplier Temperature Grade N/A
  • Synchronous Clock No
  • Synchronous Rectifier Yes
  • Topology Step Down
  • Typical Gate Driver Pull Down Resistance (Ohm) 2/3.4
  • Typical Gate Driver Pull Up Resistance (Ohm) 3.4/5
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) N/A
  • Typical Quiescent Current (mA) 3.5
  • Typical Switching Frequency (kHz) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 1000kHz 14-Pin HTSSOP EP T/R
