LM2743MTCX/NOPB
Do pobrania | Download |
---|---|
Main description | DC/DC Cntrlr Single-OUT Step Down 1000kHz 14-Pin TSSOP T/R |

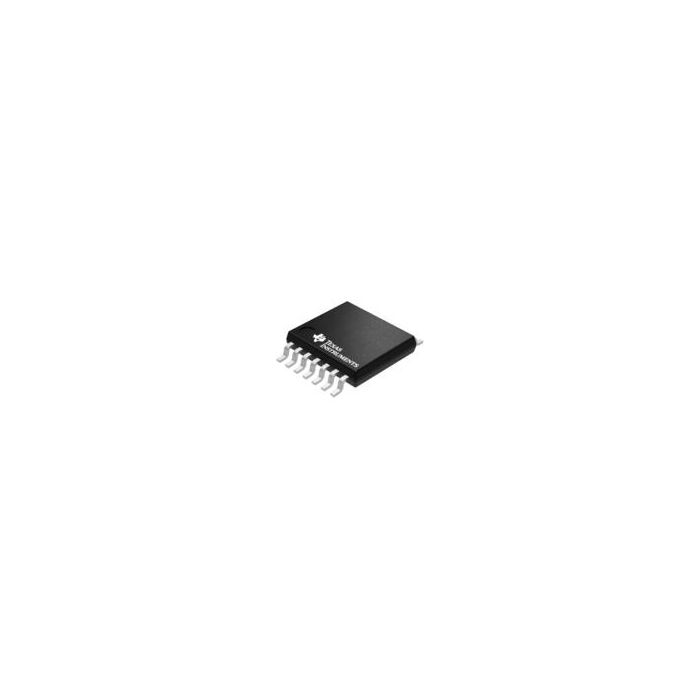

DC/DC Cntrlr Single-OUT Step Down 1000kHz 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 137
- Inventory 6
- PCNs 45
- MaskPart LM2743MTCXNOPB%
- IntroductionDate Apr 01, 2004
Parametry
- Maximum Input Voltage (V) 16
- Maximum Output Current (A) 20
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 1.7(Typ)
- Maximum Switching Frequency (kHz) 1000
- Minimum Input Voltage (V) 1
- Minimum Storage Temperature (°C) -65
- Minimum Switching Frequency (kHz) 50
- Number of Outputs 1
- Output Voltage (V) 0.6 to 13.5
- Supplier Temperature Grade N/A
- Topology Step Down
- Typical Gate Driver Pull Down Resistance (Ohm) 2/2
- Typical Gate Driver Pull Up Resistance (Ohm) 3/3
- Typical Input Voltage (V) N/A
- Typical Output Current (A) N/A
- Typical Quiescent Current (mA) 1.7
