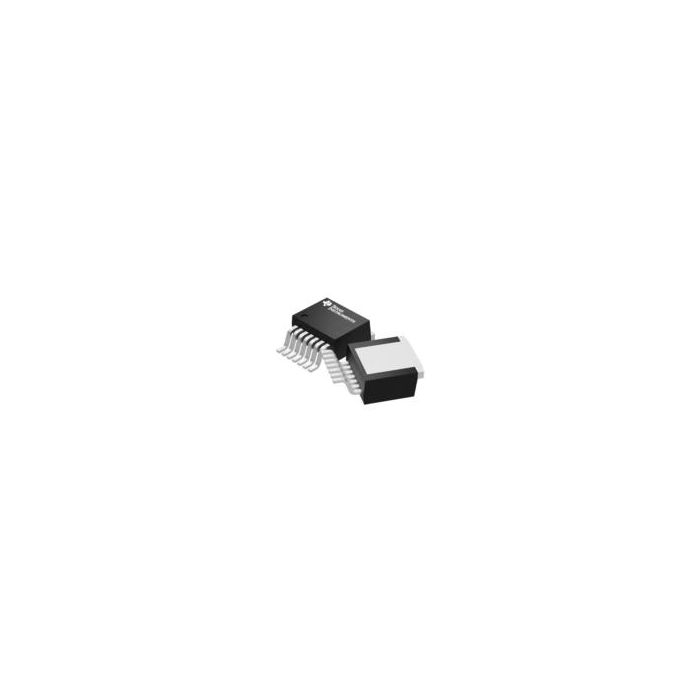

LM2676SX-ADJ/NOPB

ProducentTexas InstrumentsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2676SX-ADJ_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM2676SX-ADJ/NOPB

Conv DC-DC 8V to 40V Step Down Single-Out 1.23V to 37V 3A 8-Pin(7+Tab) TO-263 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 45
  • Inventory 7
  • PCNs 43
  • MaskPart LM2676SXADJNOPB%
  • IntroductionDate Apr 01, 2000

Parametry

  • Efficiency (%) 88(Typ)
  • Isolation Non-Isolated
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 40
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 8
  • Minimum Isolation Voltage N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 8 to 40
  • Output Type Adjustable
  • Output Voltage (V) 1.23 to 37
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 260(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 4200
  • Typical Switch Current (A) 4.5

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 8V to 40V Step Down Single-Out 1.23V to 37V 3A 8-Pin(7+Tab) TO-263 T/R
