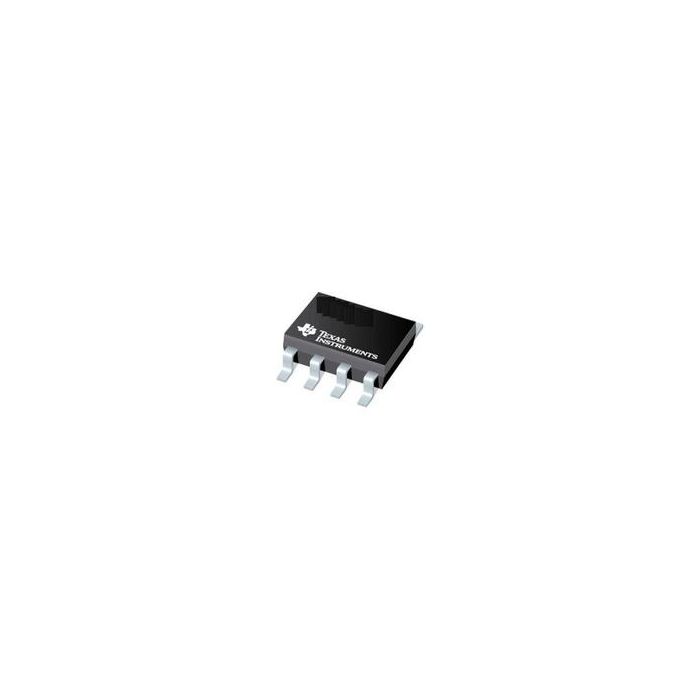

LM2674MX-ADJ

ProducentTexas InstrumentsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2674MX-ADJ_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM2674MX-ADJ

Conv DC-DC 8V to 40V Step Down Single-Out 1.21V to 37V 0.5A 8-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 67
  • Inventory 11*
  • PCNs 51
  • MaskPart LM2674MXADJ%
  • IntroductionDate Aug 01, 1997

Parametry

  • Efficiency (%) 90(Typ)
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 8
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 6.5 to 40
  • Output Type Adjustable
  • Output Voltage (V) 1.21 to 37
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 225 to 275
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 8V to 40V Step Down Single-Out 1.21V to 37V 0.5A 8-Pin SOIC T/R
