LM2665M6/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2665M6_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM2665M6/NOPB

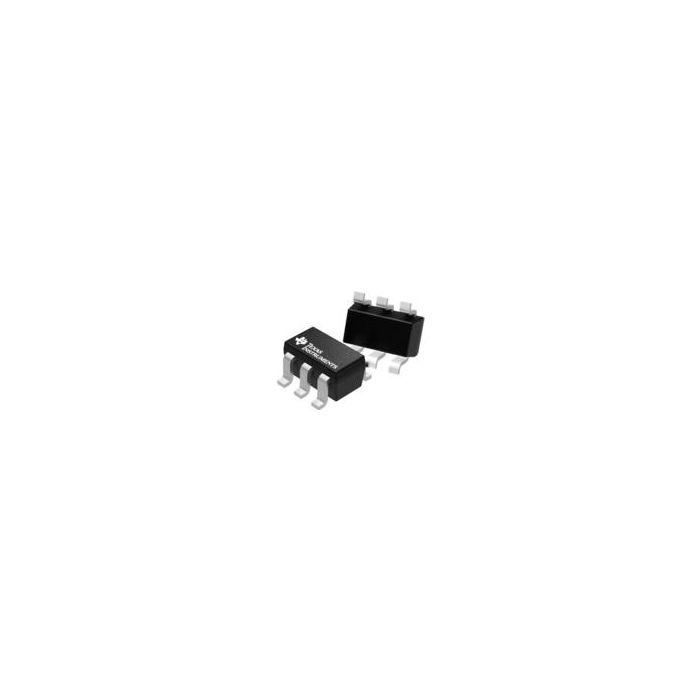

Charge Pump STPUP 5V to 11V 40mA 6-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 57
  • Inventory 6
  • PCNs 44
  • MaskPart LM2665M6NOPB%
  • IntroductionDate Nov 01, 1999

Parametry

  • Efficiency (%) 93(Typ)
  • Function Step Up
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 600
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Output Current (mA) 40(Min)
  • Output Type Adjustable
  • Output Voltage (V) 5 to 11
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 80(Typ)
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump STPUP 5V to 11V 40mA 6-Pin SOT-23 T/R
