LM2588SX-ADJ/NOPB

ProducentTexas InstrumentsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2588SX-ADJ_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM2588SX-ADJ/NOPB

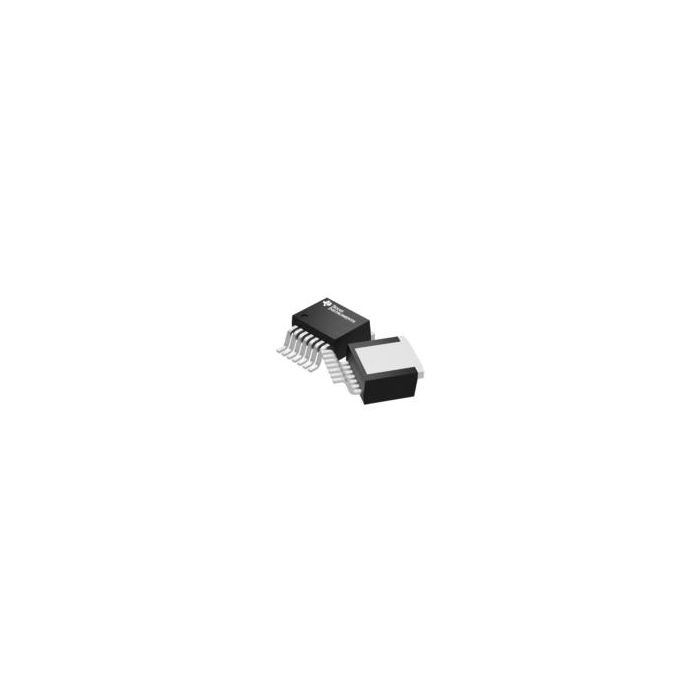

Conv DC-DC 4V to 40V Synchronous Step Up Single-Out 1.23V 5A 8-Pin(7+Tab) TO-263 T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • Inventory 7
  • PCNs 43
  • MaskPart LM2588S%ADJNOPB
  • IntroductionDate Apr 01, 1998

Parametry

  • Efficiency (%) 90(Typ)
  • Isolation N/A
  • Line Regulation 100mV
  • Load Regulation 100mV
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 5
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 4
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4 to 40
  • Output Type Adjustable
  • Output Voltage (V) 1.23(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 11000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4V to 40V Synchronous Step Up Single-Out 1.23V 5A 8-Pin(7+Tab) TO-263 T/R
