LM2575BWM TR

ProducentMicrochip TechnologyEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2575BWM_TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LM2575BWM TR

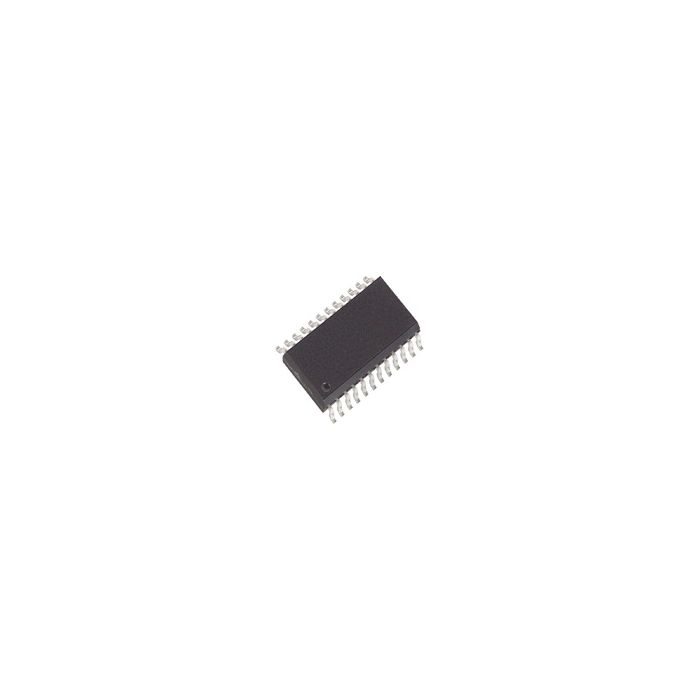

Conv DC-DC 4V to 40V Step Down Single-Out 1.23V to 37V 1A 24-Pin SOIC W T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 73
  • Inventory 3*
  • PCNs 50
  • MaskPart LM2575BWM%
  • IntroductionDate Aug 03, 1999

Parametry

  • Efficiency (%) 82(Typ)
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 40
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 4 to 40
  • Output Type Adjustable
  • Output Voltage (V) 1.23 to 37
  • Process Technology N/A
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 58
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 5000
  • Typical Switch Current (A) 2.2

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4V to 40V Step Down Single-Out 1.23V to 37V 1A 24-Pin SOIC W T/R
