LM2575-12BWM
| Do pobrania | Download |
|---|---|

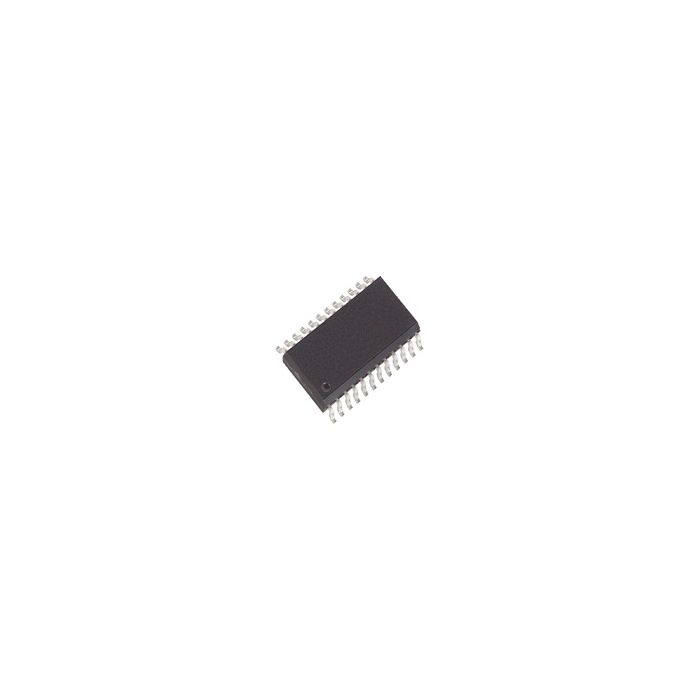

| Main description | Conv DC-DC 4V to 40V Step Down Single-Out 12V 1A 24-Pin SOIC W |
Conv DC-DC 4V to 40V Step Down Single-Out 12V 1A 24-Pin SOIC W
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 173
- Inventory 1
- PCNs 49
- MaskPart LM257512BWM%
- IntroductionDate Aug 03, 1999
Parametry
- Efficiency (%) 88(Typ)
- Isolation N/A
- Line Regulation N/A
- Load Regulation N/A
- Maximum High Level Output Voltage (V) N/A
- Maximum Input Voltage (V) 40
- Maximum Low Level Output Voltage (V) N/A
- Maximum Output Current (A) 1
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Fixed
- Output Voltage (V) 12
- Process Technology N/A
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 58
- Switching Regulator Yes
- Technology N/A
- Type Step Down
- Typical Input Voltage (V) N/A
- Typical Output Resistance (Ohm) N/A
- Typical Quiescent Current (uA) 5000
- Typical Switch Current (A) 2.2
