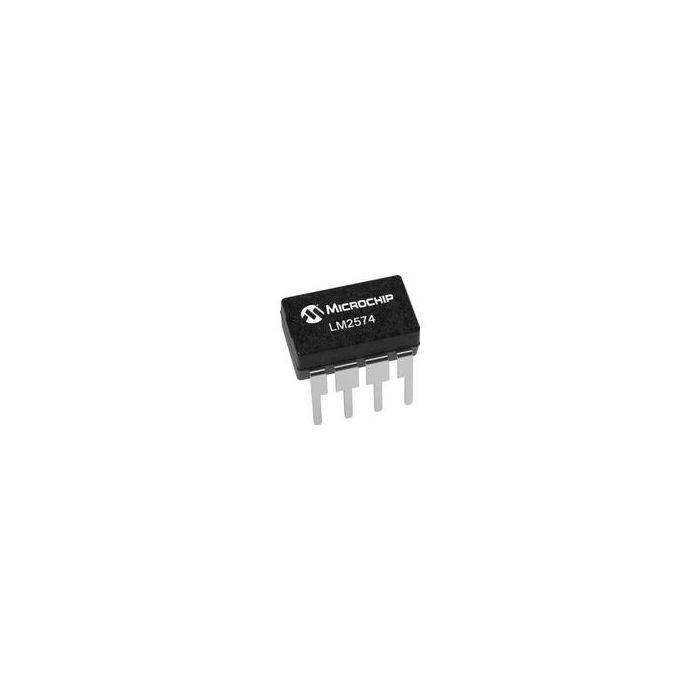

LM2574YN

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM2574YN_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LM2574YN

Conv DC-DC 4V to 40V Inv/Step Down Single-Out 1.23V to 37V 0.5A 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 17
  • Inventory 1
  • PCNs 60
  • GIDEP-Alerts 6
  • MaskPart LM2574YN%
  • IntroductionDate Aug 01, 1999

Parametry

  • Efficiency (%) 78(Typ)
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.5
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 4
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 40(Max)
  • Output Type Adjustable
  • Output Voltage (V) 1.23 to 37
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 58
  • Switching Regulator Yes
  • Technology N/A
  • Type Inverting|Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 5000

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4V to 40V Inv/Step Down Single-Out 1.23V to 37V 0.5A 8-Pin PDIP Tube
