LM224DTBR2G
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Quad GP ±16V/32V 14-Pin TSSOP W T/R |

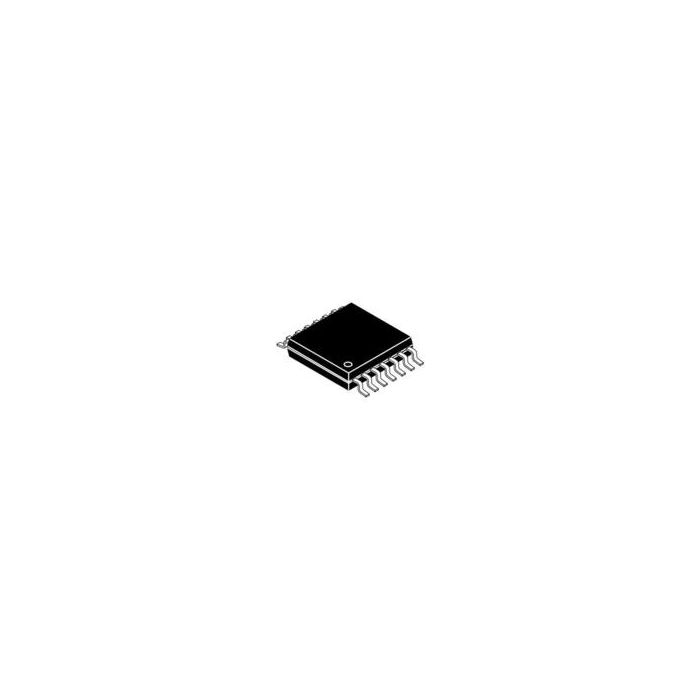

Op Amp Quad GP ±16V/32V 14-Pin TSSOP W T/R
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 756
- Inventory 7
- PCNs 21
- GIDEP-Alerts 1
- MaskPart LM224DTB%G
- IntroductionDate Jan 15, 1997
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=LM224DTBR2G&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Manufacturer Type General Purpose Amplifier
- Maximum Dual Supply Voltage (V) ±16
- Maximum Input Bias Current (uA) 0.15@5V
- Maximum Input Offset Current (uA) 0.03@5V
- Maximum Input Offset Voltage (mV) 5@30V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 1.2@5V@-25C to 85C
- Maximum Single Supply Voltage (V) 32
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 32 to 36
- Minimum CMRR (dB) 70
- Minimum CMRR Range (dB) 70 to 71
- Minimum Dual Supply Voltage (V) ±1.5
- Minimum PSRR (dB) 65
- Minimum Single Supply Voltage (V) 3
- Number of Channels per Chip 4
- Output Type N/A
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail N/A
- Shut Down Support No
- Supplier Temperature Grade N/A
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12|±15
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Input Noise Voltage Density (nV/rtHz) N/A
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
- Typical Output Current (mA) 40@5V
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
- Typical Slew Rate (V/us) N/A
- Typical Voltage Gain (dB) 100
