LM1875T/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM1875T_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM1875T/NOPB

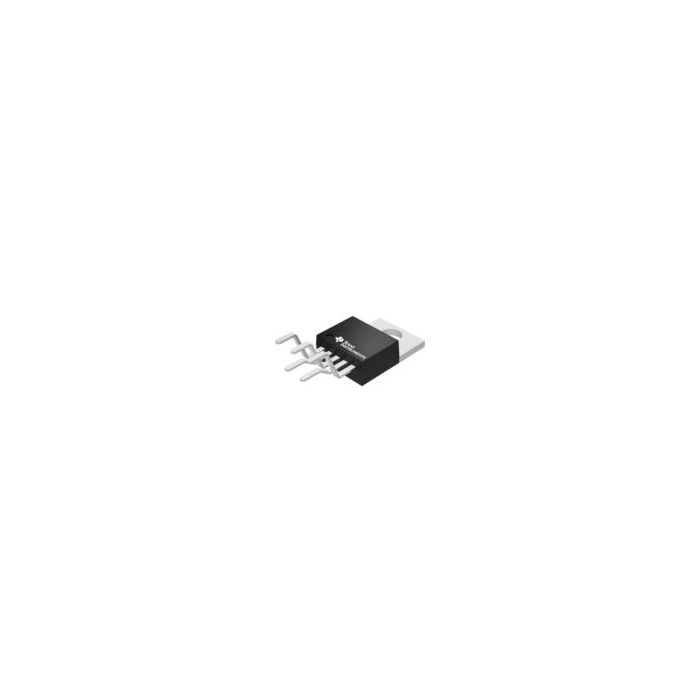

Audio Amp Speaker 1-CH Mono 25W Class-AB 5-Pin(5+Tab) TO-220 Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 13
  • Inventory 7
  • PCNs 42
  • MaskPart LM1875TNOPB%
  • IntroductionDate Feb 01, 1999

Parametry

  • Amplifier Type Class-AB
  • Function Speaker
  • Input Signal Type Single
  • Maximum Dual Supply Voltage (V) ±30
  • Maximum Input Bias Current (uA) 2@±25V
  • Maximum Input Offset Voltage (mV) 15
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 70
  • Maximum Output Current (mA) N/A
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Single Supply Voltage (V) 60
  • Maximum Supply Current (mA) 100@±25V
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) ±8
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 16
  • Output Signal Type Single
  • Output Type 1-Channel Mono
  • Power Supply Type Single|Dual
  • Rail to Rail N/A
  • Supplier Temperature Grade N/A
  • Total Harmonic Distortion Noise 0.015%@8Ohm@20W
  • Typical Dual Supply Voltage (V) ±9|±12|±15|±18|±24|±28
  • Typical Gain Bandwidth Product (MHz) 5.5
  • Typical Output Power x Channels @ Load (W) 25x1@8Ohm
  • Typical PSRR (dB) 95
  • Typical Quiescent Current (mA) N/A
  • Typical Single Supply Voltage (V) 18|24|28
  • Typical Supply Current (mA) 70@±25V
  • Typical Voltage Gain (dB) 90

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 1-CH Mono 25W Class-AB 5-Pin(5+Tab) TO-220 Tube
