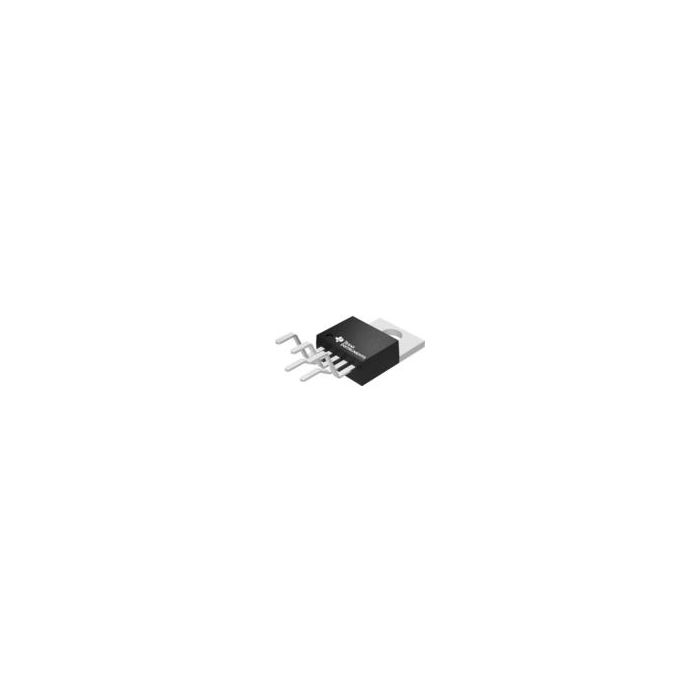

LM1875T
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 25W Class-AB 5-Pin(5+Tab) TO-220 Tube |
Audio Amp Speaker 1-CH Mono 25W Class-AB 5-Pin(5+Tab) TO-220 Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 12
- Inventory 7
- PCNs 49
- MaskPart LM1875%
- IntroductionDate Feb 01, 1999
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) ±30
- Maximum Input Bias Current (uA) 2@±25V
- Maximum Input Offset Voltage (mV) 15
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 60
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 100@±25V
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) ±8
- Minimum Single Supply Voltage (V) 16
- Minimum Storage Temperature (°C) -65
- Output Signal Type Single
- Output Type 1-Channel Mono
- Power Supply Type Single|Dual
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.015%@8Ohm@20W
- Typical Dual Supply Voltage (V) ±9|±12|±15|±18|±24|±28
- Typical Gain Bandwidth Product (MHz) 5.5
- Typical Output Power x Channels @ Load (W) 25x1@8Ohm
- Typical PSRR (dB) 95
- Typical Quiescent Current (mA) N/A
- Typical Single Supply Voltage (V) 18|24|28
- Typical Supply Current (mA) 70@±25V
- Typical Voltage Gain (dB) 90
