LM158QT
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin DFN EP T/R |

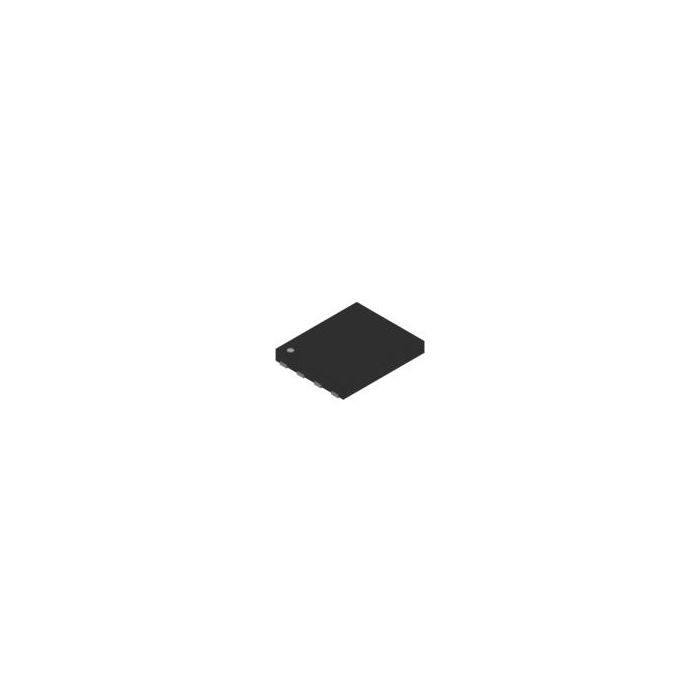

Op Amp Dual Low Power Amplifier ±15V/30V 8-Pin DFN EP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1801
- Inventory 3
- PCNs 10
- MaskPart LM158QT%
- IntroductionDate Dec 01, 1988
Parametry
- Manufacturer Type Low Power Amplifier
- Maximum Dual Supply Voltage (V) ±15
- Maximum Input Bias Current (uA) 0.15@5V
- Maximum Input Offset Current (uA) 0.03@5V
- Maximum Input Offset Voltage (mV) 5@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 1.2@5V@0C to 70C
- Maximum Single Supply Voltage (V) 30
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 30 to 32
- Minimum CMRR (dB) 70
- Minimum CMRR Range (dB) 70 to 71
- Minimum Dual Supply Voltage (V) ±1.5
- Minimum PSRR (dB) N/A
- Minimum Single Supply Voltage (V) 3
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 2
- Output Type N/A
- Power Supply Type Single|Dual
- Process Technology Bipolar
- Rail to Rail N/A
- Shut Down Support No
- Supplier Temperature Grade N/A
- Type Low Power Amplifier
- Typical Dual Supply Voltage (V) ±3|±5|±9|±12
- Typical Gain Bandwidth Product (MHz) 1.1
- Typical Input Bias Current (uA) 0.02@5V
- Typical Input Noise Voltage Density (nV/rtHz) 55@30V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) N/A
- Typical Output Current (mA) 40@15V
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 5|9|12|15|18|24|28
- Typical Slew Rate (V/us) 0.6@15V
- Typical Voltage Gain (dB) 100
