LM1117DT-3.3/NOPB

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LM1117DT-3.3_NOPB_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / LM1117DT-3.3/NOPB

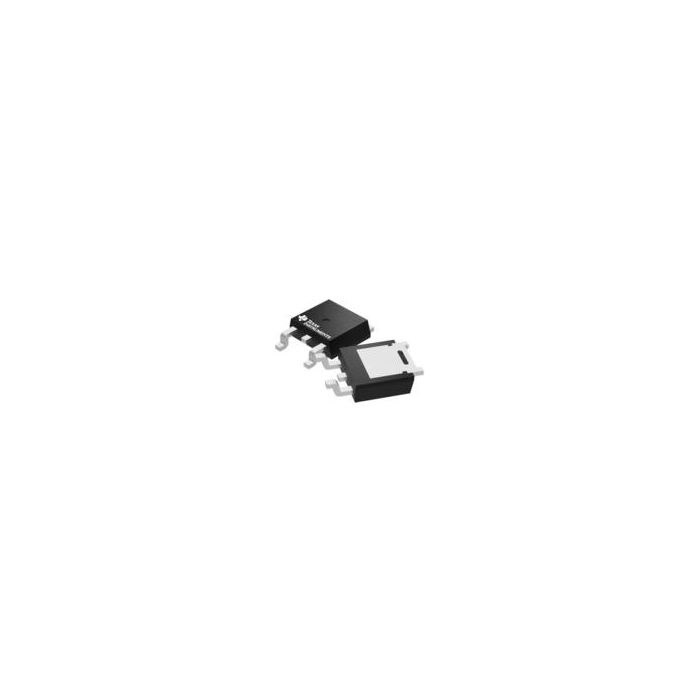

LDO Regulator Pos 3.3V 0.8A 3-Pin(2+Tab) TO-252 Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 591
  • Inventory 8
  • PCNs 44
  • MaskPart LM1117DT3.3NOPB%
  • IntroductionDate Jun 01, 1998

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 45.1°C/W
  • Junction to Case 52.1°C/W
  • Line Regulation 1mV(Typ)
  • Load Regulation 1mV(Typ)
  • Maximum Dropout Voltage @ Current (V) 1.2@100mA|1.25@500mA|1.3@800mA
  • Maximum Input Voltage (V) 15
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.8
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 10
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.6
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 1.1@100mA|1.15@500mA|1.2@800mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 5

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3.3V 0.8A 3-Pin(2+Tab) TO-252 Tube
