LF85CPT-TR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LF85CPT-TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LF85CPT-TR

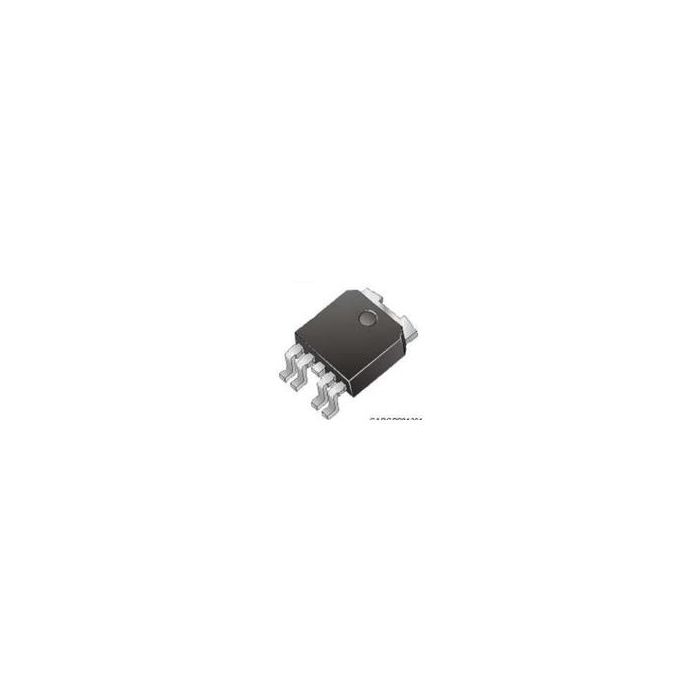

LDO Regulator Pos 8.5V 0.5A 5-Pin(4+Tab) PPAK T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 64
  • Inventory 2
  • PCNs 21
  • MaskPart LF85CPT%
  • IntroductionDate Jun 21, 2004

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 100°C/W
  • Junction to Case 8°C/W
  • Line Regulation 42mV
  • Load Regulation 42mV
  • Maximum Dropout Voltage @ Current (V) 0.35@200mA|0.7@500mA
  • Maximum Input Voltage (V) 16
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.5
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 1.5
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Fixed
  • Output Voltage (V) 8.5
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Shutdown|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.2@200mA|0.4@500mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.7

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 8.5V 0.5A 5-Pin(4+Tab) PPAK T/R
