LD6935L/1828PX

ProducentNexperiaAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD6935L_1828PX_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / LD6935L/1828PX

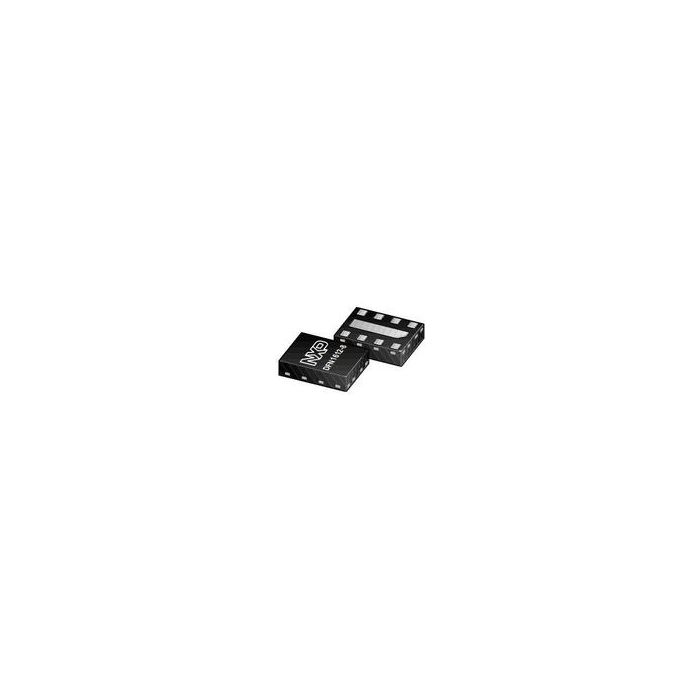

LDO Regulator Pos 1.8V2.8V 0.3A/0.3A 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentNexperia
  • Automotive No

Informacje dodatkowe

  • Crosses 4631
  • PCNs 6
  • MaskPart LD6935L1828P%
  • AliasParts 934067641115

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient 135K/W
  • Junction to Case N/A
  • Line Regulation 0.1%/V
  • Load Regulation 0.01%/mA
  • Maximum Dropout Voltage @ Current (V) N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.3(Min)|0.3(Min)
  • Maximum Power Dissipation (mW) 740
  • Maximum Quiescent Current (mA) 0.05
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 1.75
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 2
  • Output Type Fixed
  • Output Voltage (V) 1.8|2.8
  • Output Voltage Range (V) 1.8 to 10
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.24@300mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.035

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.8V2.8V 0.3A/0.3A 8-Pin DFN EP T/R
