LD6806F/12H
| Do pobrania | Download |
|---|---|
| Main description | LDO Regulator Pos 1.2V 0.2A 6-Pin XSON |

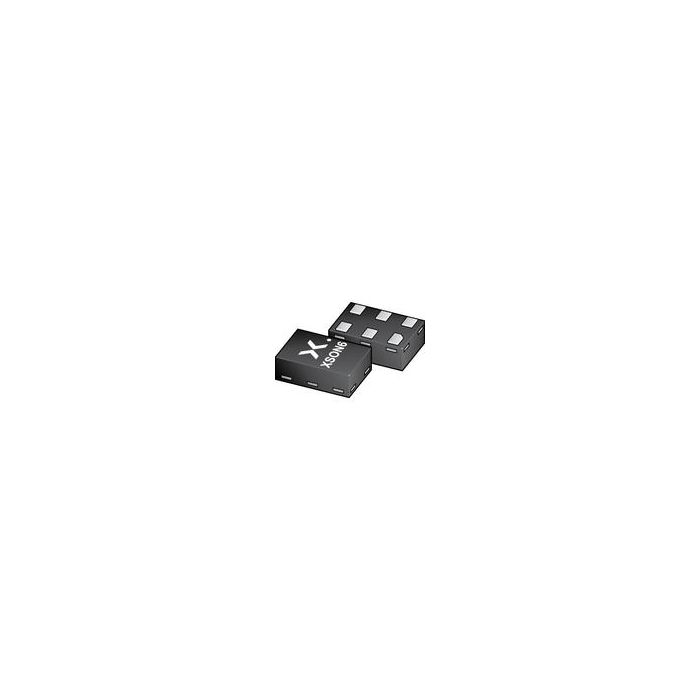

LDO Regulator Pos 1.2V 0.2A 6-Pin XSON
Informacje podstawowe
- ProducentNexperia
- Automotive No
Informacje dodatkowe
- Crosses 887
- Inventory 1*
- PCNs 4
- MaskPart LD6806F12H%
- IntroductionDate May 16, 2011
Parametry
- Accuracy (%) ±3
- Junction to Case N/A
- Line Regulation 0.1%/V
- Load Regulation 0.02%/mA
- Maximum Dropout Voltage @ Current (V) 0.13@200mA
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) 0.2
- Maximum Power Dissipation (mW) 450
- Maximum Quiescent Current (mA) 0.1
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 2.3
- Minimum Storage Temperature (°C) -55
- Number of Outputs 1
- Output Type Fixed
- Output Voltage (V) 1.2
- Output Voltage Range (V) <1.8
- Polarity Positive
- Reference Voltage (V) N/A
- Special Features Current Limit|ESD Protection|Thermal Protection
- Supplier Temperature Grade N/A
- Type LDO
- Typical Dropout Voltage @ Current (V) 0.08@200mA
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.07
