LD59100PUR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD59100PUR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD59100PUR

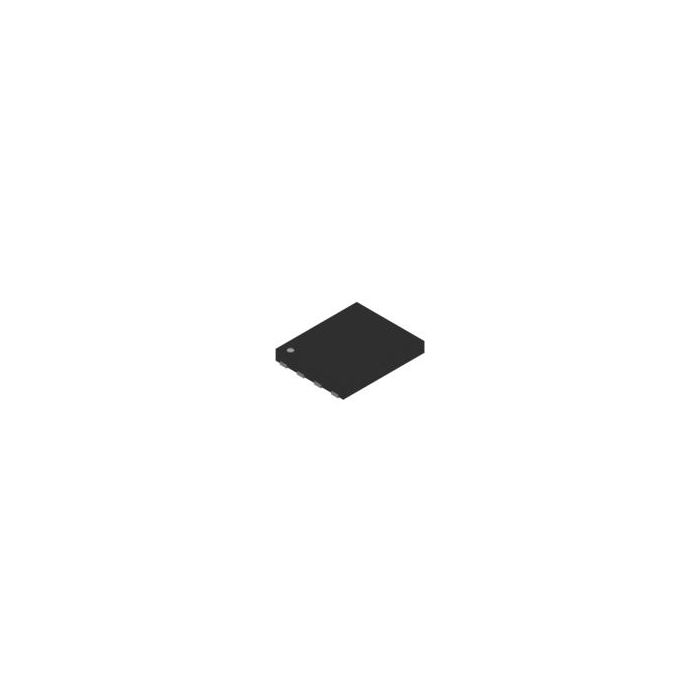

LDO Regulator Neg/Pos -0.3V to 5.5V 1A 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 4
  • PCNs 10
  • MaskPart LD59100PUR%

Parametry

  • Accuracy (%) ±3
  • Junction to Ambient 55°C/W
  • Junction to Case 10°C/W
  • Line Regulation 0.005%/V(Typ)
  • Load Regulation 0.0001%/mA(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.5@1A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type N/A
  • Output Type Adjustable
  • Output Voltage (V) -0.3 to 5.5
  • Output Voltage Range (V)
  • Pass Element Type N/A
  • Polarity Negative|Positive
  • Reference Voltage (V) 1.204(Typ)
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.2@1A
  • Typical Ground Current @ Full Load (mA) N/A
  • Typical Output Capacitance (uF) 1
  • Typical Output Noise Voltage (uVrms) N/A
  • Typical PSRR (dB) 78
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.13

Więcej informacji

Do pobrania Download
Main description LDO Regulator Neg/Pos -0.3V to 5.5V 1A 8-Pin DFN EP T/R
