LD56050DPU110R

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD56050DPU110R_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD56050DPU110R

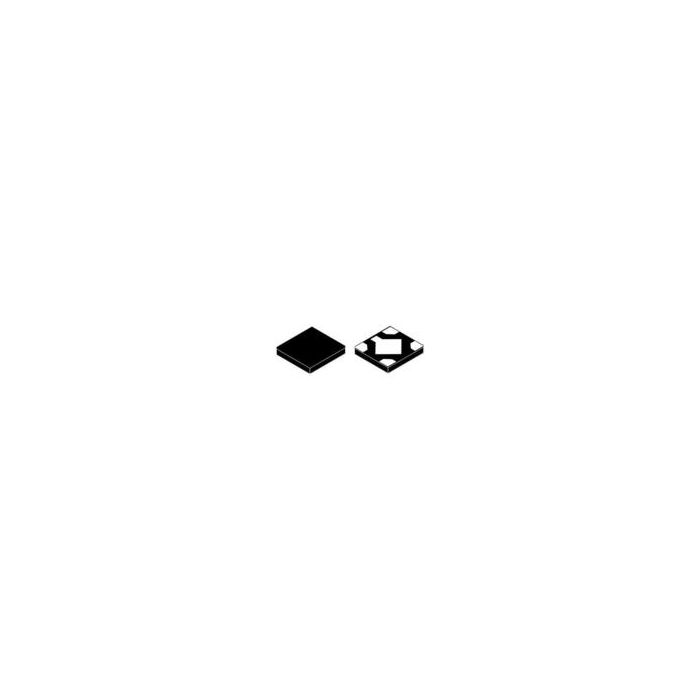

LDO Regulator Pos 1.1V 0.5A 5-Pin DFN T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 334
  • Inventory 6
  • PCNs 10
  • MaskPart LD56050DPU110R%
  • IntroductionDate Feb 02, 2018

Parametry

  • Accuracy (%) ±1.5
  • Junction to Ambient 170°C/W
  • Junction to Case N/A
  • Line Regulation 0.01%/V(Typ)
  • Load Regulation 1.5mV(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.025@0.15A|0.12@0.5A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.5
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 0.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 1.1
  • Output Voltage Range (V)
  • Pass Element Type NMOS
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.013@0.15A|0.08@0.5A
  • Typical Ground Current @ Full Load (mA) N/A
  • Typical Output Capacitance (uF) 1
  • Typical Output Noise Voltage (uVrms) 38
  • Typical PSRR (dB) 75
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.1V 0.5A 5-Pin DFN T/R
