LD49150PT08R

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD49150PT08R_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD49150PT08R

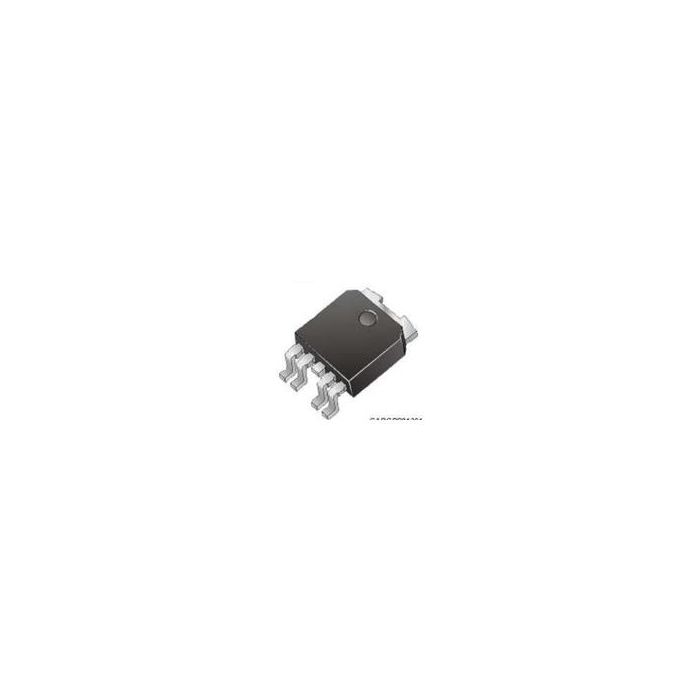

LDO Regulator Pos 0.8V to 4.5V0.8V 1.5A 5-Pin(4+Tab) PPAK T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 46
  • Inventory 3
  • PCNs 19
  • MaskPart LD49150PT08%
  • IntroductionDate Mar 08, 2005

Parametry

  • Accuracy (%) ±1.5
  • Junction to Ambient N/A
  • Junction to Case N/A
  • Line Regulation 0.1%/V
  • Load Regulation 1%
  • Maximum Dropout Voltage @ Current (V) 0.2@1.5A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1.5
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Minimum Input Voltage (V) 1.4
  • Minimum Operating Temperature (°C) -25
  • Number of Outputs 1
  • Output Type Adjustable|Fixed
  • Output Voltage (V) 0.8 to 4.5|0.8
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 0.812
  • Special Features Current Limit|Excellent Line and Load Regulation|Thermal Shutdown Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 0.8V to 4.5V0.8V 1.5A 5-Pin(4+Tab) PPAK T/R
