LD39200PU33R

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD39200PU33R_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD39200PU33R

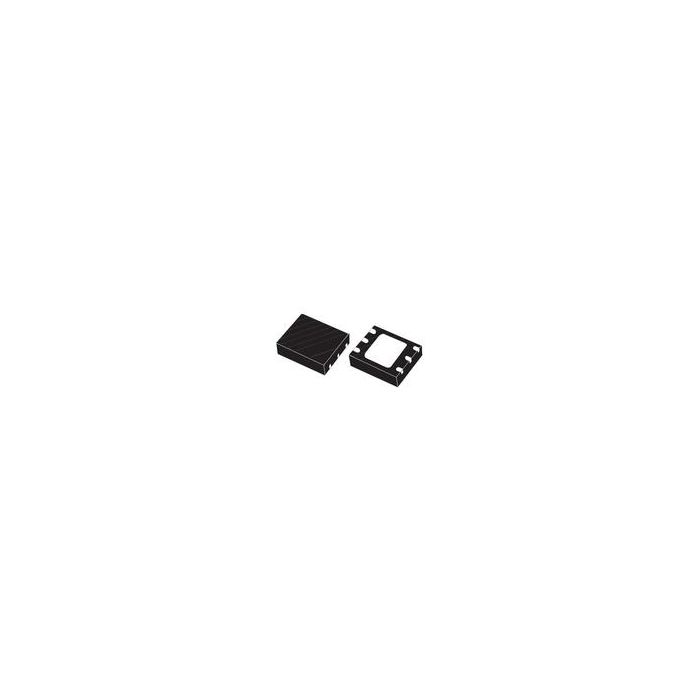

LDO Regulator Pos 3.3V 2A 6-Pin VFDFPN EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1258
  • Inventory 4
  • PCNs 13
  • MaskPart LD39200PU33R%

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 55°C/W
  • Junction to Case 10°C/W
  • Line Regulation 0.01%/V(Typ)
  • Load Regulation 0.05%/A(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.25@2A
  • Maximum Input Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 2
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.3
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 1.25
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type N/A
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Reverse Current Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.13@2A
  • Typical Output Capacitance (uF) 10
  • Typical Output Noise Voltage (uVrms) N/A
  • Typical PSRR (dB) 70
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.1

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3.3V 2A 6-Pin VFDFPN EP T/R
