LD39080PT-R

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD39080PT-R_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD39080PT-R

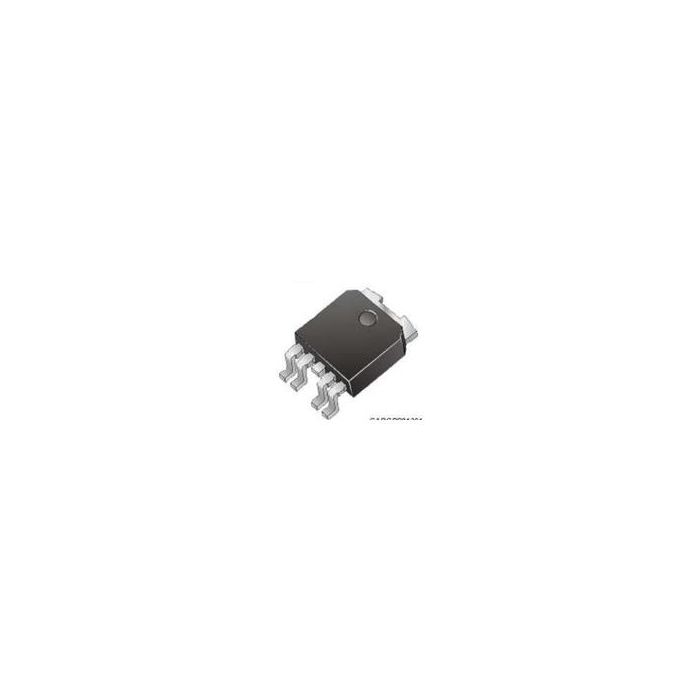

LDO Regulator Pos 1.22V to 5V 0.8A 5-Pin(4+Tab) PPAK T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 493
  • PCNs 19
  • MaskPart LD39080PT%
  • IntroductionDate Jan 26, 2007

Parametry

  • Accuracy (%) ±1.5
  • Junction to Ambient 100°C/W
  • Junction to Case 8°C/W
  • Line Regulation 0.2%
  • Load Regulation 0.4%
  • Maximum Dropout Voltage @ Current (V) 0.04@150mA|0.3@800mA
  • Maximum Input Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.8
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 2.5
  • Minimum Input Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.22 to 5
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.22
  • Special Features Current Limit|Thermal Protection
  • Supplier Temperature Grade Extended Industrial
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.02@150mA|0.15@800mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 1

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.22V to 5V 0.8A 5-Pin(4+Tab) PPAK T/R
