LD29080PTR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LD29080PTR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / LD29080PTR

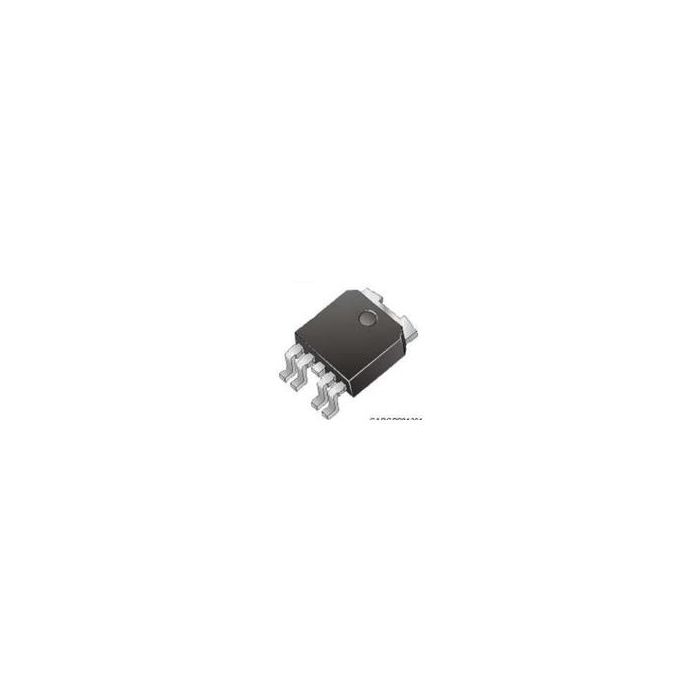

LDO Regulator Pos 1.5V to 15V 0.8A 5-Pin(4+Tab) PPAK T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 611
  • Inventory 5
  • PCNs 23
  • MaskPart LD29080P%
  • IntroductionDate Oct 01, 2004

Parametry

  • Accuracy (%) ±1
  • Junction to Ambient 100°C/W
  • Junction to Case 8°C/W
  • Line Regulation 0.5%
  • Load Regulation 1%
  • Maximum Dropout Voltage @ Current (V) N/A
  • Maximum Input Voltage (V) 13
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.8
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 5
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 1
  • Output Type Adjustable
  • Output Voltage (V) 1.5 to 15
  • Output Voltage Range (V)
  • Polarity Positive
  • Reference Voltage (V) 1.2607
  • Special Features Current Limit|Shutdown|Thermal Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Dropout Voltage @ Current (V) 0.4@800mA
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 2

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 1.5V to 15V 0.8A 5-Pin(4+Tab) PPAK T/R
