LAN9730i-ABZJ-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LAN9730I-ABZJ-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LAN9730i-ABZJ-TR

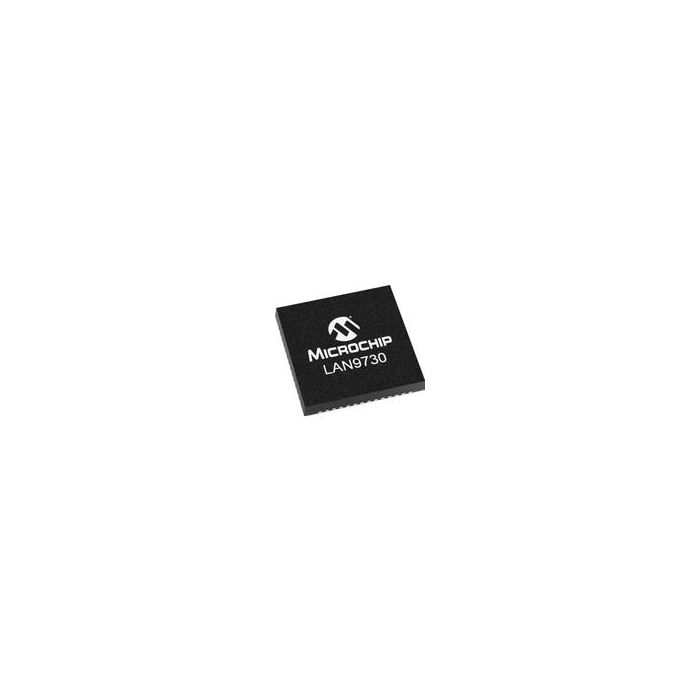

Ethernet CTLR Single Chip 10Mbps/100Mbps 1.2V/3.3V 56-Pin VQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 38
  • Inventory 1
  • PCNs 55
  • GIDEP-Alerts 1
  • MaskPart LAN9730iABZJTR%
  • IntroductionDate Oct 10, 2011

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support No
  • Ethernet Interface Type N/A
  • Ethernet Speed (Mbps) 10|100
  • Host Interface USB
  • Loopback Mode N/A
  • Maximum Operating Supply Voltage (V) 1.26|3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (W) 0.121(Typ)
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.14|2.97
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Operating Supply Voltage (V) 1.2|3.3
  • Physical Network Type 10BASE-T|100BASE-TX
  • Standard Supported IEEE802.3|802.3u
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 1.2|3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps 1.2V/3.3V 56-Pin VQFN EP T/R
