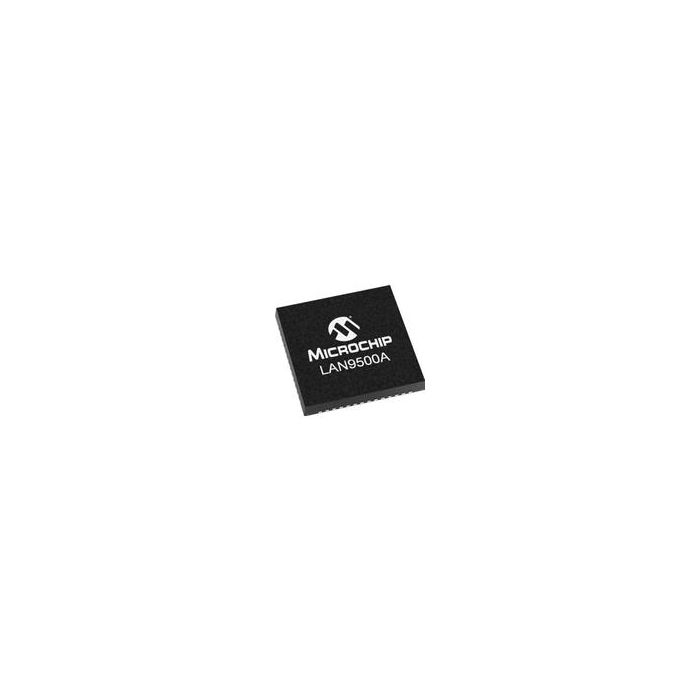

LAN9500A-ABZJ-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LAN9500A-ABZJ-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LAN9500A-ABZJ-TR

Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 56-Pin VQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 19
  • Inventory 8
  • PCNs 61
  • GIDEP-Alerts 2
  • MaskPart LAN9500AABZJ%
  • IntroductionDate Jun 28, 2002

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support No
  • Ethernet Interface Type N/A
  • Ethernet Speed (Mbps) 10|100
  • Host Interface USB
  • Loopback Mode N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (W) 0.257(Typ)
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -55
  • Operating Supply Voltage (V) 3.3
  • Physical Network Type 10BASE-T|100BASE-TX
  • Standard Supported IEEE802.3|802.3u
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 56-Pin VQFN EP T/R
