LAN9252I/PT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LAN9252I_PT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LAN9252I/PT

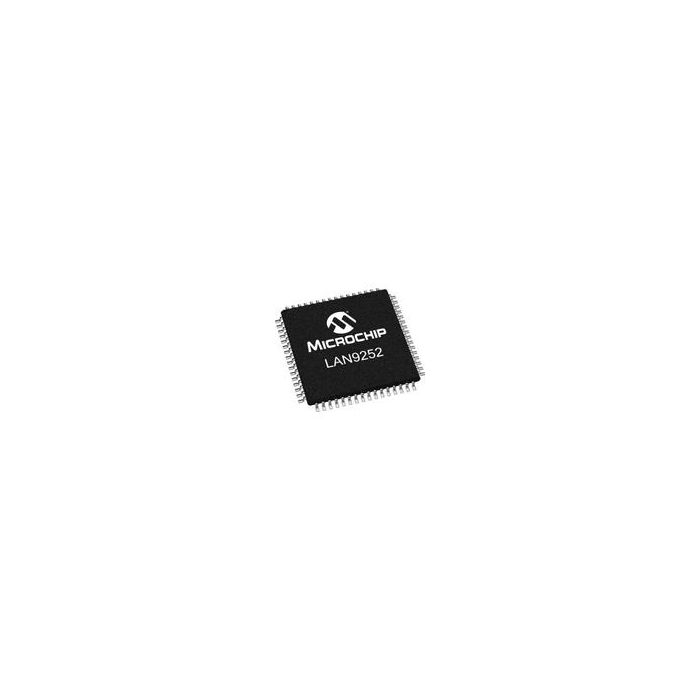

Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 64-Pin TQFP EP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 7
  • PCNs 45
  • MaskPart LAN9252IPT%
  • IntroductionDate Apr 08, 2015

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support Yes
  • Ethernet Interface Type MII|RMII
  • Ethernet Speed (Mbps) 10|100
  • Host Interface N/A
  • Loopback Mode Internal
  • Maximum Operating Supply Voltage (V) 1.26|3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (W) 821
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.14|3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Operating Supply Voltage (V) 3.3
  • Physical Network Type 100BASE-T|100BASE-FX|100BASE-TX|10BASE-T
  • Standard Supported IEEE 802.3
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 64-Pin TQFP EP Tray
