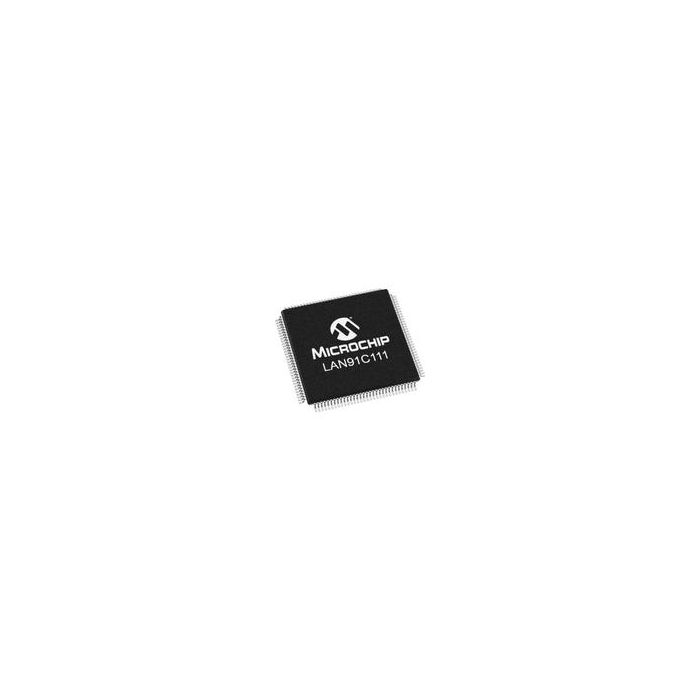

LAN91C111I-NU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LAN91C111I-NU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LAN91C111I-NU

Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 128-Pin TQFP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 11
  • PCNs 62
  • GIDEP-Alerts 1
  • MaskPart LAN91C111INU%
  • IntroductionDate Aug 23, 2001

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support Yes
  • Ethernet Interface Type MII
  • Ethernet Speed (Mbps) 10|100
  • Host Interface EISA|ISA
  • Loopback Mode Internal
  • Maximum Operating Supply Voltage (V) 3.465
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (W) N/A
  • Minimum Operating Supply Voltage (V) 3.135
  • Minimum Operating Temperature (°C) -40
  • Operating Supply Voltage (V) 3.3
  • Physical Network Type 100BASE-T|100BASE-T4|100BASE-TX|10BASE-T
  • Standard Supported IEEE 802.3|IEEE 802.3u
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps 3.3V 128-Pin TQFP Tray
