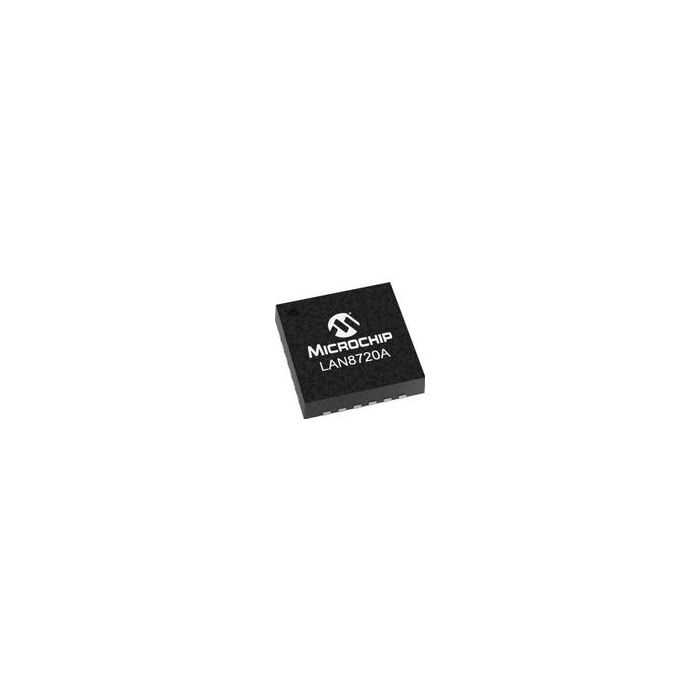

LAN8720A-CP-TR-ABC
Do pobrania | Download |
---|---|
Main description | PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 24-Pin SQFN EP T/R |
PHY 1-CH 10Mbps/100Mbps 2.5V/3.3V 24-Pin SQFN EP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 333
- Inventory 5
- PCNs 50
- GIDEP-Alerts 3
- MaskPart LAN8720ACP%ABC
Parametry
- Ethernet Interface Type MII/RMII
- Ethernet Speed 10Mbps/100Mbps
- Integrated CDR No
- JTAG Support No
- Maximum Data Rate 100Mbps
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -55
- Number of Channels per Chip 1
- Optical Carrier Level N/A
- Overhead Octet Support No
- PHY Line Side Interface No
- Power Supply Type Analog|Digital
- Standard Supported 10BASE-T|100BASE-TX|IEEE 802.3
- Supplier Temperature Grade Extended Commercial
- Type Fast Ethernet Transceiver
- Typical Data Rate (Mbps) 10/100
- UTOPIA Level N/A
