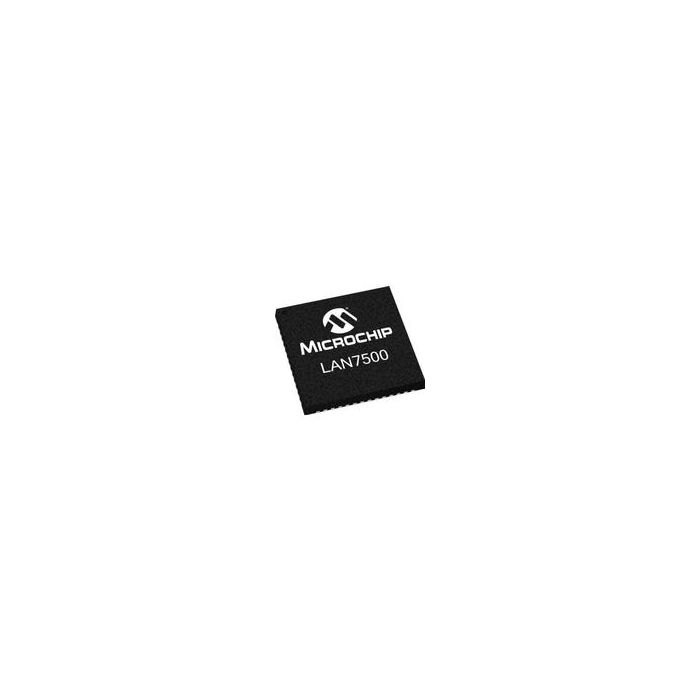

LAN7500-ABZJ-TR

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
LAN7500-ABZJ-TR_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / LAN7500-ABZJ-TR

Ethernet CTLR Single Chip 10Mbps/100Mbps/1000Mbps 1.2V/2.5V/3.3V 56-Pin QFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 37
  • Inventory 3
  • PCNs 50
  • GIDEP-Alerts 1
  • MaskPart LAN7500ABZJ%

Parametry

  • Auto-Negotiation Yes
  • Category Single Chip
  • Communication Mode Full Duplex|Half Duplex
  • DMA Support No
  • Ethernet Interface Type N/A
  • Ethernet Speed (Mbps) 10|100|1000
  • Host Interface USB
  • Loopback Mode N/A
  • Maximum Operating Supply Voltage (V) 1.26|3.6
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (W) 0.553(Typ)
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.14|2.25|3
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -55
  • Operating Supply Voltage (V) 1.2|2.5|3.3
  • Physical Network Type 10BASE-T|100BASE-TX|1000BASE-T
  • Standard Supported IEEE802.3|802.3u|802.3ab
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 1.2|2.5|3.3

Więcej informacji

Do pobrania Download
Main description Ethernet CTLR Single Chip 10Mbps/100Mbps/1000Mbps 1.2V/2.5V/3.3V 56-Pin QFN EP T/R
