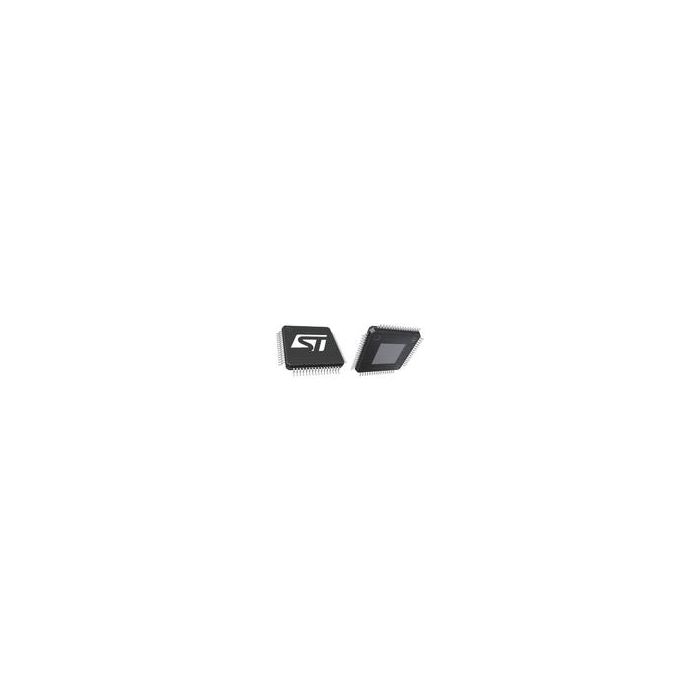

L99DZ100GP-TR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
L99DZ100GP-TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L99DZ100GP-TR

H-Bridge Motor Driver Automotive 64-Pin LQFP EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1448
  • Inventory 2
  • PCNs 15
  • MaskPart L99DZ100GP%
  • IntroductionDate Sep 30, 2016

Parametry

  • Control Interface PWM
  • Maximum Operating Current (mA) N/A
  • Maximum Operating Supply Voltage (V) 28
  • Maximum Operating Temperature (°C) 175
  • Maximum Output Current (A) 10
  • Maximum Peak Output Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) N/A
  • Minimum Operating Supply Voltage (V) -0.3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) N/A
  • Motor Type DC Motor
  • Number of Phases N/A
  • Operating Supply Voltage (V) -0.3 to 28
  • Output Configuration H-Bridge
  • Output Voltage (V) 5
  • Shutdown Threshold (V) N/A
  • Step Modes N/A
  • Supplier Temperature Grade N/A
  • Type Motor Driver
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description H-Bridge Motor Driver Automotive 64-Pin LQFP EP T/R
