L7985TR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
L7985TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L7985TR

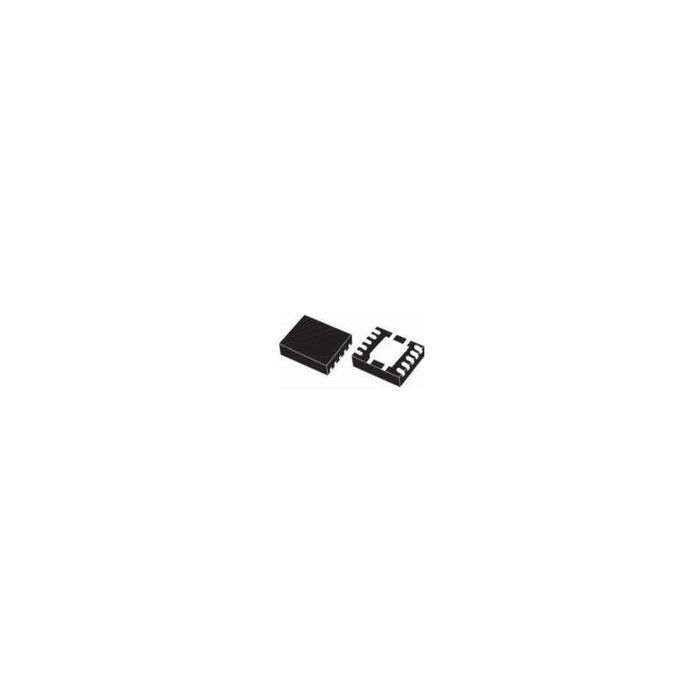

Conv DC-DC 4.5V to 38V Synchronous Step Down Single-Out 0.6V to 38V 2A 10-Pin VFQFPN EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 72
  • Inventory 6
  • PCNs 13
  • MaskPart L7985TR%

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 38
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (A) 2
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 4.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 38
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 210 to 275
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 2400(Max)

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 4.5V to 38V Synchronous Step Down Single-Out 0.6V to 38V 2A 10-Pin VFQFPN EP T/R
