L6932H1.2
ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- L6932H1.2_STMICROELECTRONICS
0,00 zł
Opis / L6932H1.2

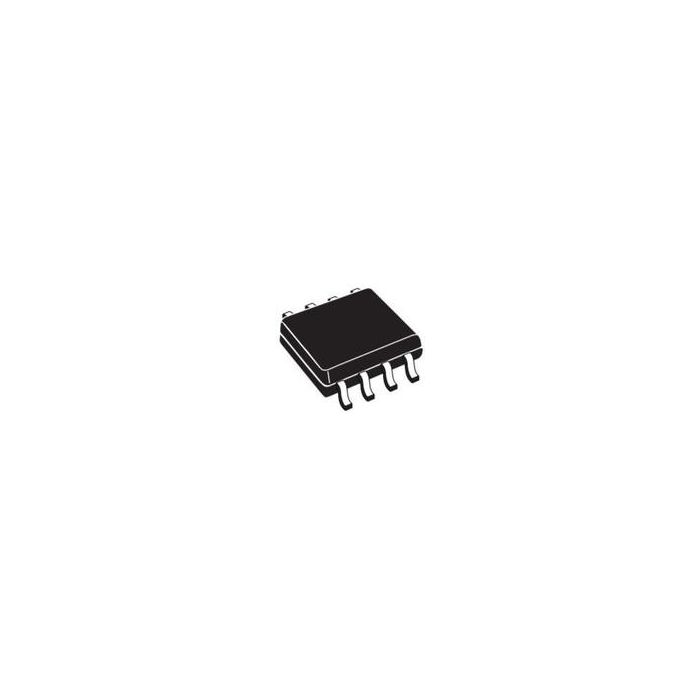

LDO Regulator Pos 1.2V to 5V 2A 8-Pin HSOP Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 574
- Inventory 1
- PCNs 17
- MaskPart L6932H1.2%
- IntroductionDate Jun 23, 2006
Parametry
- Accuracy (%) ±1
- Junction to Ambient 34°C/W
- Junction to Case N/A
- Line Regulation 5mV
- Load Regulation 15mV
- Maximum Dropout Voltage @ Current (V) N/A
- Maximum Input Voltage (V) 14
- Maximum Output Current (A) 2
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.4
- Minimum Input Voltage (V) 2
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 1.2 to 5
- Output Voltage Range (V)
- Polarity Positive
- Reference Voltage (V) N/A
- Special Features Excellent Line and Load Regulation|Short Circuit Protection|Thermal Shutdown Protection
- Supplier Temperature Grade N/A
- Type LDO
- Typical Dropout Voltage @ Current (V) N/A
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.2
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | LDO Regulator Pos 1.2V to 5V 2A 8-Pin HSOP Tube |
