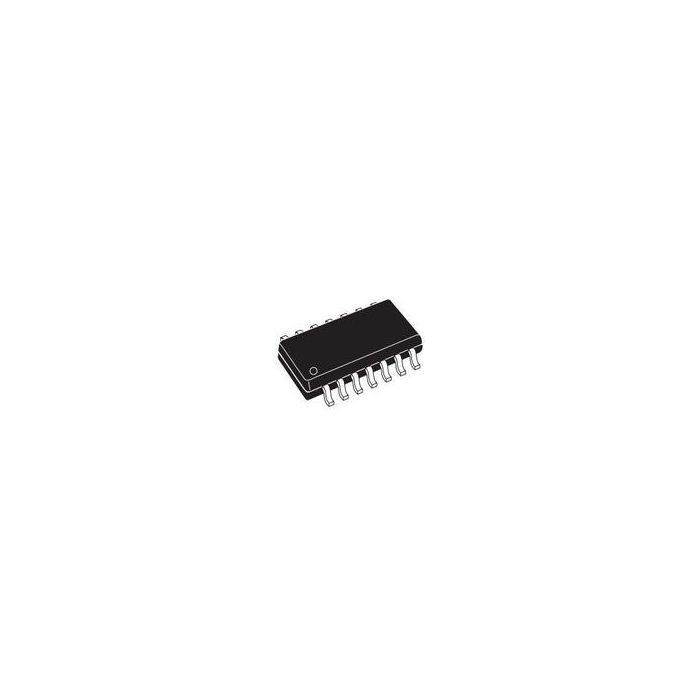

L6498LDTR
| Do pobrania | Download |
|---|---|
| Main description | Driver 2-OUT High and Low Side Half Brdg Non-Inv 14-Pin SO T/R |
Driver 2-OUT High and Low Side Half Brdg Non-Inv 14-Pin SO T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 401
- Inventory 4
- PCNs 11
- MaskPart L6498LDTR%
Parametry
- Absolute Propagation Delay Time (ns) 120
- Bridge Type Half Bridge
- Driver Configuration Non-Inverting
- Driver Type High and Low Side
- High and Low Sides Dependency Synchronous
- Input Logic Compatibility CMOS|TTL|3.3V|5V
- Latch-Up Proof No
- Maximum Fall Time (ns) 25(Typ)
- Maximum Power Dissipation (mW) 1000
- Maximum Propagation Delay Time (ns) 120
- Maximum Rise Time (ns) 25(Typ)
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Delay Time (ns) 30
- Maximum Turn-On Delay Time (ns) 30
- Minimum Storage Temperature (°C) -50
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) N/A
- Peak Output Current (A) N/A
- Reference Voltage (V) N/A
- Special Features Under Voltage Lockout
- Supplier Temperature Grade N/A
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 2.5(Max)
- Typical Input Low Threshold Voltage (V) 1.45(Max)
