L6470PD

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
L6470PD_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L6470PD

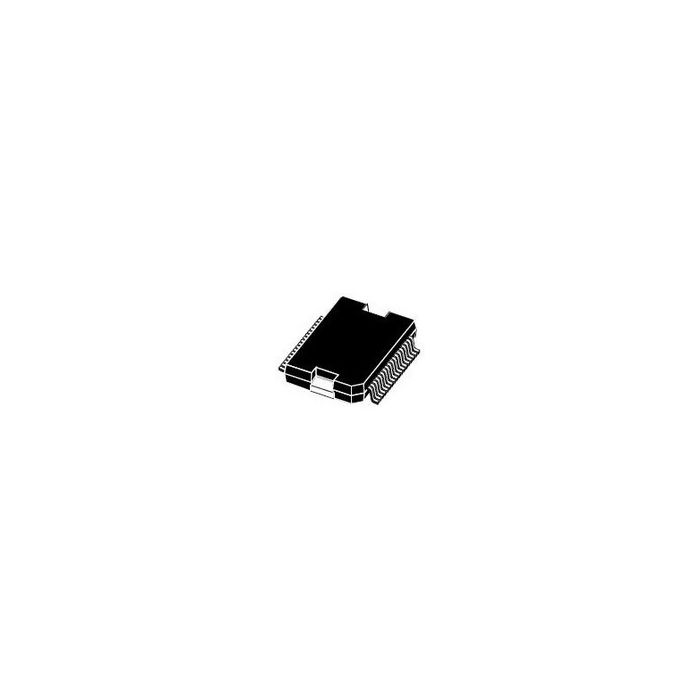

Microstepping Motor Driver 3.3V 36-Pin PowerSO EP Tube

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1289
  • Inventory 6
  • PCNs 13
  • MaskPart L6470PD%
  • IntroductionDate Nov 06, 2009

Parametry

  • Maximum Operating Current (mA) N/A
  • Maximum Operating Supply Voltage (V) 45
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 8
  • Minimum Operating Temperature (°C) -25
  • Minimum Storage Temperature (°C) -55
  • Motor Type Stepper Motor
  • Number of Phases 2
  • Operating Supply Voltage (V) 3.3
  • Output Voltage (V) N/A
  • Shutdown Threshold (V) N/A
  • Supplier Temperature Grade N/A
  • Type Motor Driver
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Microstepping Motor Driver 3.3V 36-Pin PowerSO EP Tube
