L6398D
| Do pobrania | Download |
|---|---|
| Main description | Driver 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SO N Tube |

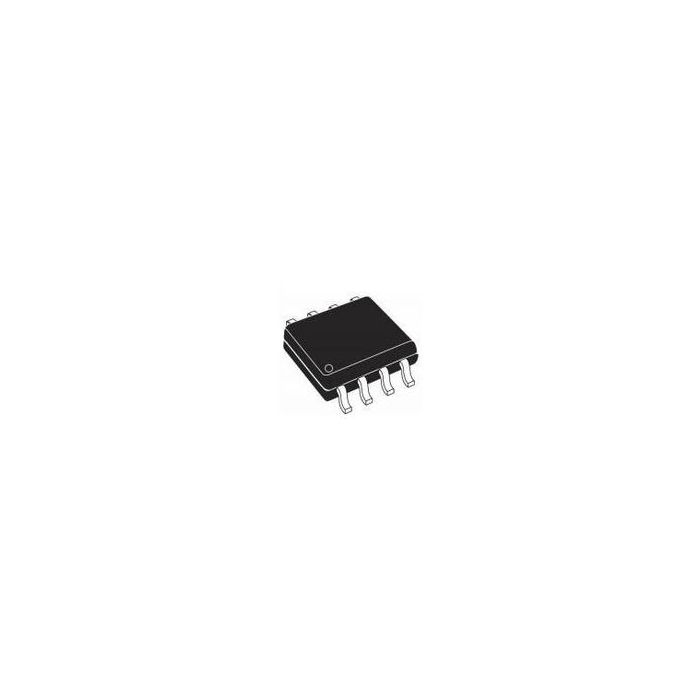

Driver 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SO N Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 277
- Inventory 6
- PCNs 16
- MaskPart L6398D%
- IntroductionDate Dec 14, 2010
Parametry
- Absolute Propagation Delay Time (ns) 200
- Bridge Type Half Bridge
- Driver Configuration Inverting|Non-Inverting
- Driver Type High and Low Side
- High and Low Sides Dependency Synchronous
- Input Logic Compatibility CMOS|TTL|3.3V(Min)|5V
- Latch-Up Proof No
- Maximum Fall Time (ns) 70
- Maximum Power Dissipation (mW) 800
- Maximum Propagation Delay Time (ns) 200
- Maximum Rise Time (ns) 120
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -50
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) N/A
- Peak Output Current (A) N/A
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 2.25(Min)
- Typical Input Low Threshold Voltage (V) 0.8(Max)
