L6390D
| Do pobrania | Download |
|---|---|

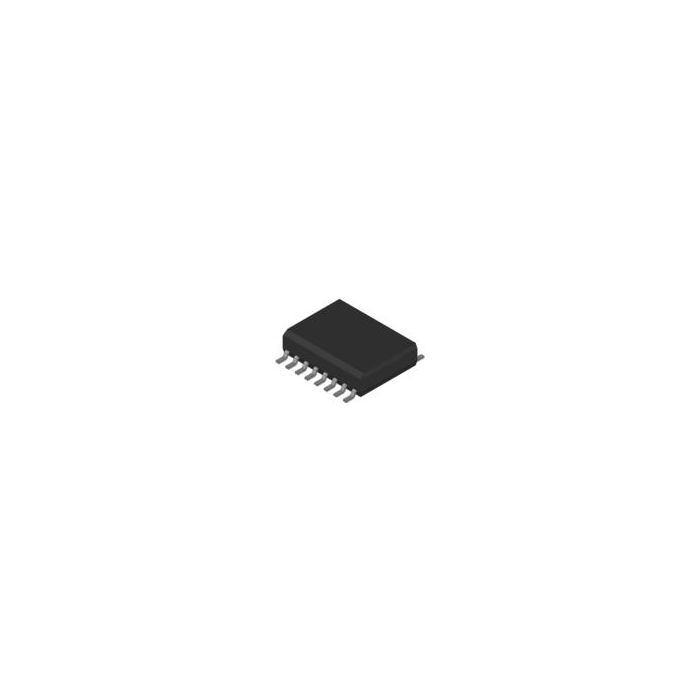

| Main description | Driver 0.54V 0.43A 1-OUT High Side/Low Side Half Brdg Inv/Non-Inv 16-Pin SO Tube |
Driver 0.54V 0.43A 1-OUT High Side/Low Side Half Brdg Inv/Non-Inv 16-Pin SO Tube
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 8
- Inventory 6
- PCNs 15
- MaskPart L6390D%
- IntroductionDate Mar 08, 2005
Parametry
- Absolute Propagation Delay Time (ns) 200
- Bridge Type Half Bridge
- Driver Configuration Inverting|Non-Inverting
- Driver Type High Side|Low Side
- High and Low Sides Dependency Synchronous
- Input Logic Compatibility CMOS|TTL
- Maximum Fall Time (ns) 70
- Maximum Power Dissipation (mW) 800
- Maximum Propagation Delay Time (ns) 200
- Maximum Rise Time (ns) 120
- Maximum Supply Current (mA) 290(Typ)
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Number of Drivers 1
- Number of Outputs 1
- Output Resistance (Ohm) N/A
- Peak Output Current (A) 0.43(Typ)
- Reference Voltage (V) 0.54
- Special Features Shutdown|Thermal Protection
- Supplier Temperature Grade N/A
- Type IGBT
- Typical Input High Threshold Voltage (V) 1.9 to 2.25
- Typical Input Low Threshold Voltage (V) 0.8 to 1.1
