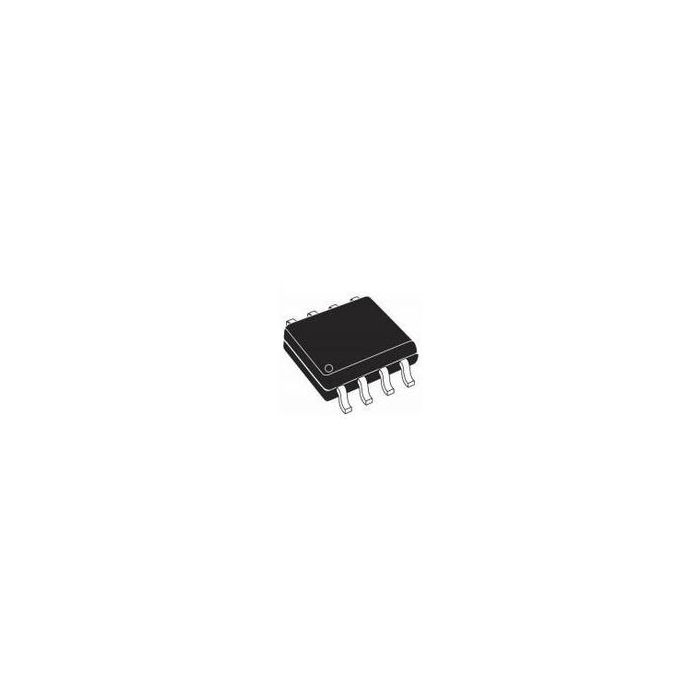

L6384ED013TR
Do pobrania | Download |
---|---|
Main description | Driver 600V 0.65A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SO N T/R |
Driver 600V 0.65A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SO N T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 97
- Inventory 8
- PCNs 23
- MaskPart L6384ED%
- IntroductionDate Oct 12, 2007
Parametry
- Absolute Propagation Delay Time (ns) 300
- Bridge Type Half Bridge
- Driver Configuration Inverting|Non-Inverting
- Driver Type High and Low Side
- High and Low Sides Dependency Synchronous
- Input Logic Compatibility CMOS|TTL
- Maximum Fall Time (ns) 30(Typ)
- Maximum Power Dissipation (mW) 750
- Maximum Propagation Delay Time (ns) 300
- Maximum Rise Time (ns) 50(Typ)
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 25
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -50
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) N/A
- Peak Output Current (A) 0.65
- Reference Voltage (V) 600(Max)
- Special Features Shutdown|Synchronous|Undervoltage Lockout
- Supplier Temperature Grade N/A
- Type IGBT
- Typical Input High Threshold Voltage (V) 3.6(Min)
- Typical Input Low Threshold Voltage (V) 1.5(Max)
