L6228DTR

ProducentSTMicroelectronicsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
L6228DTR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L6228DTR

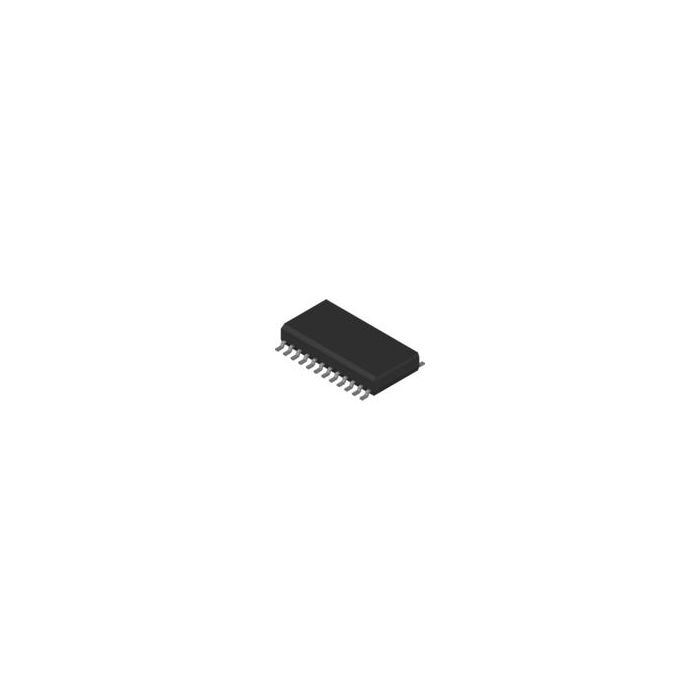

Bipolar Stepper Motor Driver 24-Pin SO T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 995
  • Inventory 5
  • PCNs 20
  • MaskPart L6228DTR%
  • IntroductionDate Mar 25, 2003

Parametry

  • Maximum Operating Current (mA) 10
  • Maximum Operating Supply Voltage (V) 52
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Motor Type Stepper Motor
  • Number of Phases 2
  • Operating Supply Voltage (V) N/A
  • Output Voltage (V) N/A
  • Shutdown Threshold (V) 5.5
  • Supplier Temperature Grade N/A
  • Type Motor Driver
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Bipolar Stepper Motor Driver 24-Pin SO T/R
