L6205PD013TR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
L6205PD013TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L6205PD013TR

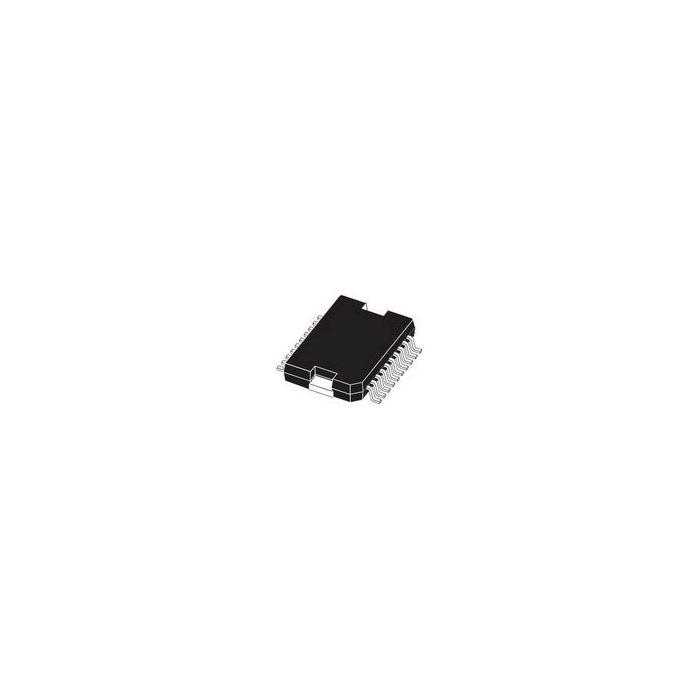

Full Bridge Motor Driver 48V 20-Pin PowerSO T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 996
  • Inventory 4
  • PCNs 22
  • MaskPart L6205PD013%
  • IntroductionDate Apr 23, 2002

Parametry

  • Control Interface PWM
  • Maximum Operating Current (mA) N/A
  • Maximum Operating Supply Voltage (V) 52
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Minimum Operating Supply Voltage (V) 8
  • Minimum Operating Temperature (°C) -40
  • Motor Type Stepper Motor
  • Number of Phases 2
  • Operating Supply Voltage (V) 48
  • Output Configuration Full Bridge
  • Output Voltage (V) N/A
  • Shutdown Threshold (V) 6
  • Supplier Temperature Grade N/A
  • Type Motor Driver
  • Typical Operating Supply Voltage (V) 48

Więcej informacji

Do pobrania Download
Main description Full Bridge Motor Driver 48V 20-Pin PowerSO T/R
