L5988DTR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
L5988DTR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / L5988DTR

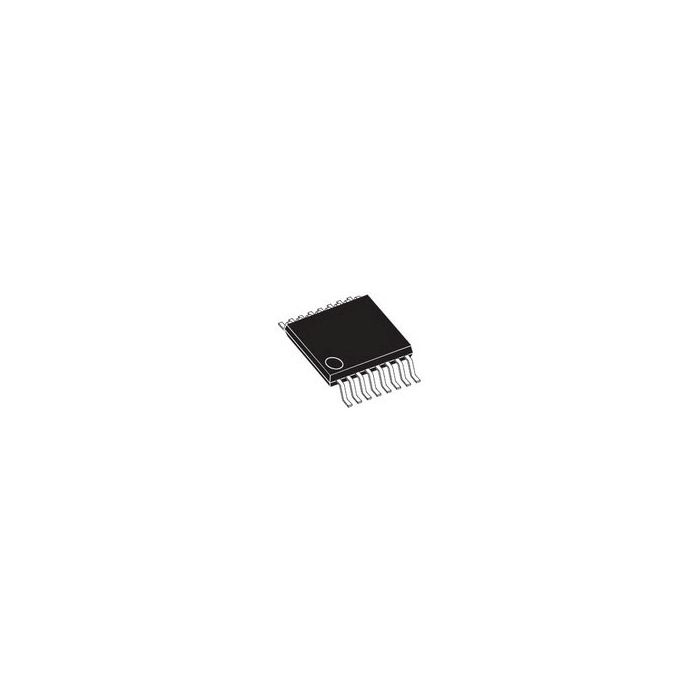

Conv DC-DC 2.9V to 18V Synchronous Step Down Single-Out 0.6V 4A 16-Pin HTSSOP EP T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 120
  • Inventory 5
  • PCNs 15
  • MaskPart L5988D%
  • IntroductionDate Jun 22, 2005

Parametry

  • Efficiency (%) N/A
  • Line Regulation 6mV(Typ)
  • Load Regulation 7.5mV(Typ)
  • Maximum Input Voltage (V) 18
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (A) 4
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.9
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.9 to 18
  • Output Type Adjustable
  • Output Voltage (V) 0.6(Min)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 400 to 1000
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 3000(Max)

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.9V to 18V Synchronous Step Down Single-Out 0.6V 4A 16-Pin HTSSOP EP T/R
